Neuson 6002RD

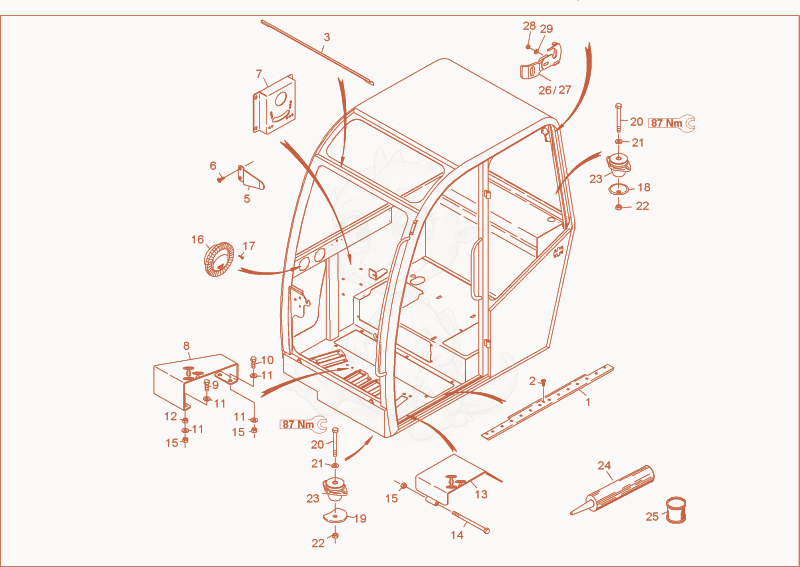

6002RD CABIN FRAME 3A Diagram

Exploded parts diagram of the CABIN FRAME 3A of a Wacker Neuson 6002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000074078Not stocked
    step strap×1
  • 21000112800
    $1.08
    ovalhead screw - 1000112800×3
  • 31000099541
    $219.62
    GUTTER - 1000099541×1
  • 51000012876Not stocked
    catch joint×1
  • 61000082321Not stocked
    ovalhead screw×2
  • 71000012877Not stocked
    console speed lever×1
  • 81000075538Not stocked
    foot rest×1
  • 91000015343Not stocked
    hex screw×2
  • 101000019136Not stocked
    hex screw×2
  • 111000015448Not stocked
    washer×2
  • 121000013021Not stocked
    hexagon nut×2
  • 131000012878Not stocked
    foot rest×1
  • 141000085353
    $1.03
    hex screw M8x120-8.8 A2C - 1000085353×1
  • 151000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×5
  • 161000075539Not stocked
    round nozzle×2
  • 171000085565
    $0.65
    countersunk screw - 1000085565×6
  • 181000069524Not stocked
    pot disc×2
  • 191000061275Not stocked
    support plate×2
  • 201000085362
    $1.88
    hex screw - 1000085362×4
  • 211000082638
    $0.73
    washer 13 -DIN134 - 1000082638×4
  • 221000020127Not stocked
    hexagon nut×4
  • 231000069525Not stocked
    silent bearing×4
  • 241000001352Not stocked
    glue cartridge×1
  • 251000075570Not stocked
    cleaner×1
  • 261000068934Not stocked
    fastening plate×1
  • 271000068935Not stocked
    fastening plate×1
  • 281000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
  • 291000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×4
