Neuson 6002RD

6002RD oil cooler Diagram

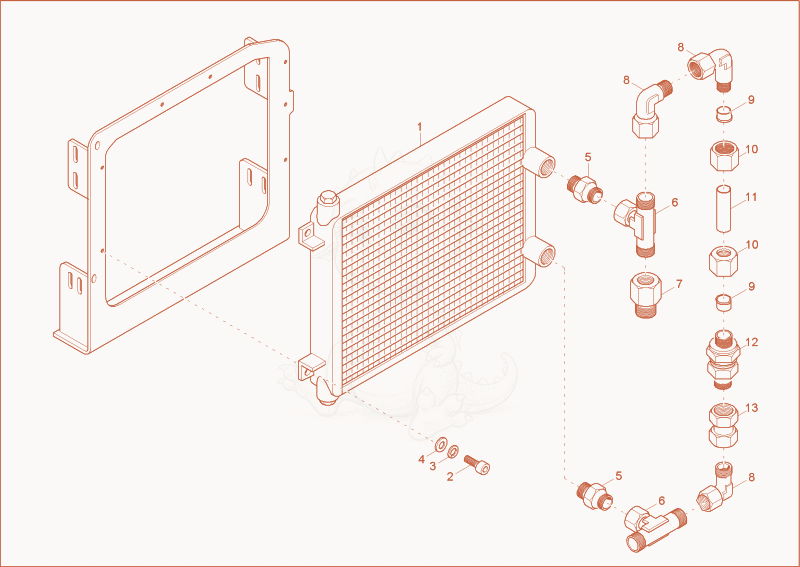

Exploded parts diagram of the oil cooler of a Wacker Neuson 6002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000075991Not stocked
    oil cooler×1
  • 21000019593Not stocked
    cheese head screw×3
  • 31000015437Not stocked
    lock washer×3
  • 41000015431Not stocked
    washer×3
  • 51000015496Not stocked
    screw joint×2
  • 61000085119
    $46.88
    ET28LOMDA3C - 1000085119×2
  • 71000085042
    $14.70
    RED28/22LOMDA3C - 1000085042×1
  • 81000085091
    $31.25
    EW28LOMDA3C - 1000085091×3
  • 91000082903Not stocked
    olive×2
  • 101000082983Not stocked
    union nut×2
  • 111000094421Not stocked
    pipe line×1
  • 121000021548Not stocked
    non return valve×1
  • 131000085062
    $41.36
    SCREW JOINT - 1000085062×1
