803-2

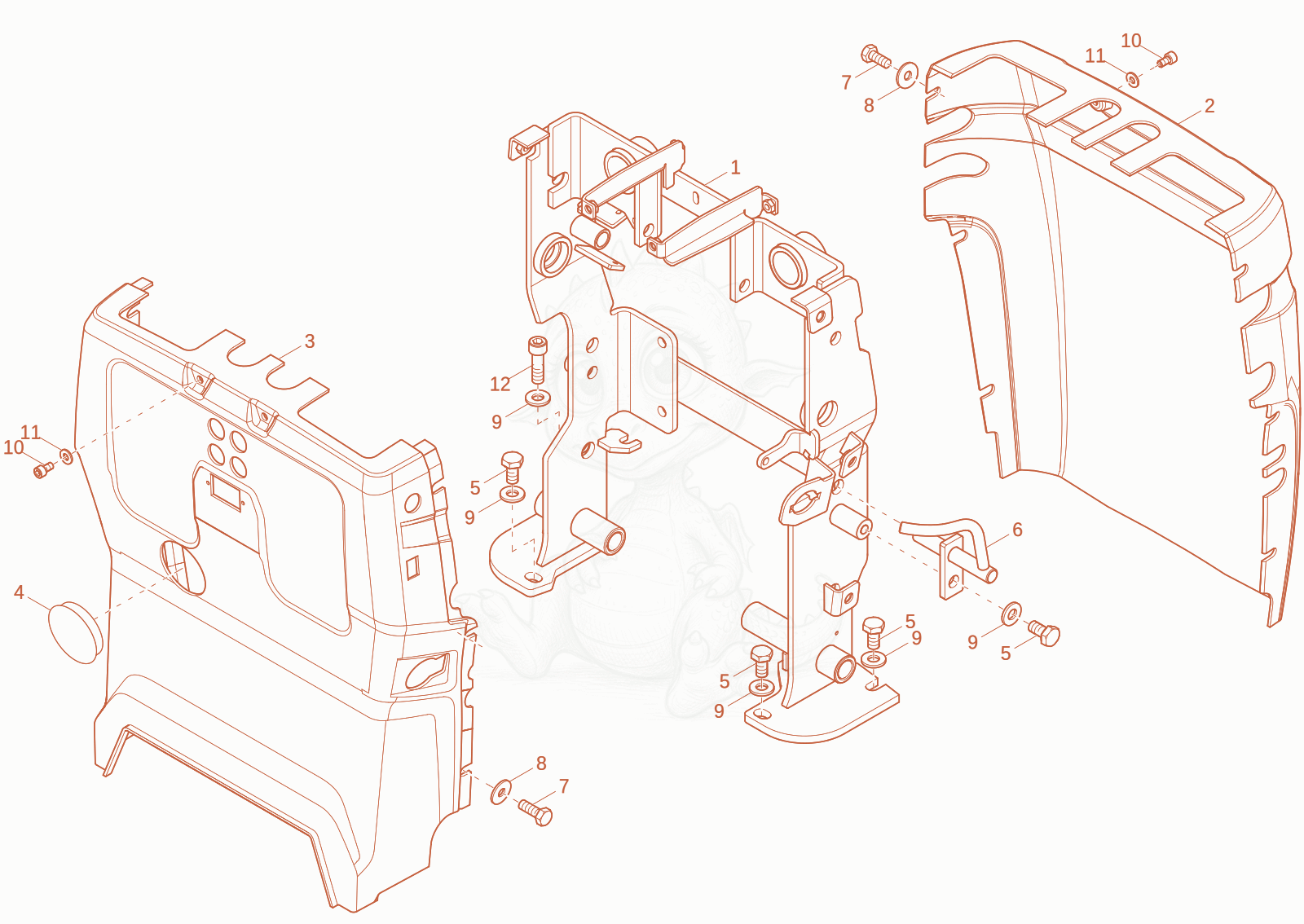

803-2 pilot stand Diagram

Exploded parts diagram of the pilot stand of a Wacker Neuson 803-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000523359Not stocked
    rack×1
  • 21000496105
    $243.32
    Pilot stand bonnet_Front - 1000496105×1
  • 31000496106Not stocked
    pilot stand bonnet×1
  • 41000327059
    $7.51
    PLUG - 1000327059×1
  • 51000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 61000523366Not stocked
    Key Protection Bar×1
  • 71000013008Not stocked
    hex screw×6
  • 81000013027Not stocked
    washer×6
  • 91000094974
    $0.70
    washer M10-DIN134 - 1000094974×5
  • 101000085454
    $0.70
    allen screw M6x12-8.8 A2C-DIN912 - 1000085454×4
  • 111000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×4
  • 121000085503
    $0.93
    cheese head screw - 1000085503×1
