803-2 WIRE HARNESS CHASSIS, ENGINE Diagram

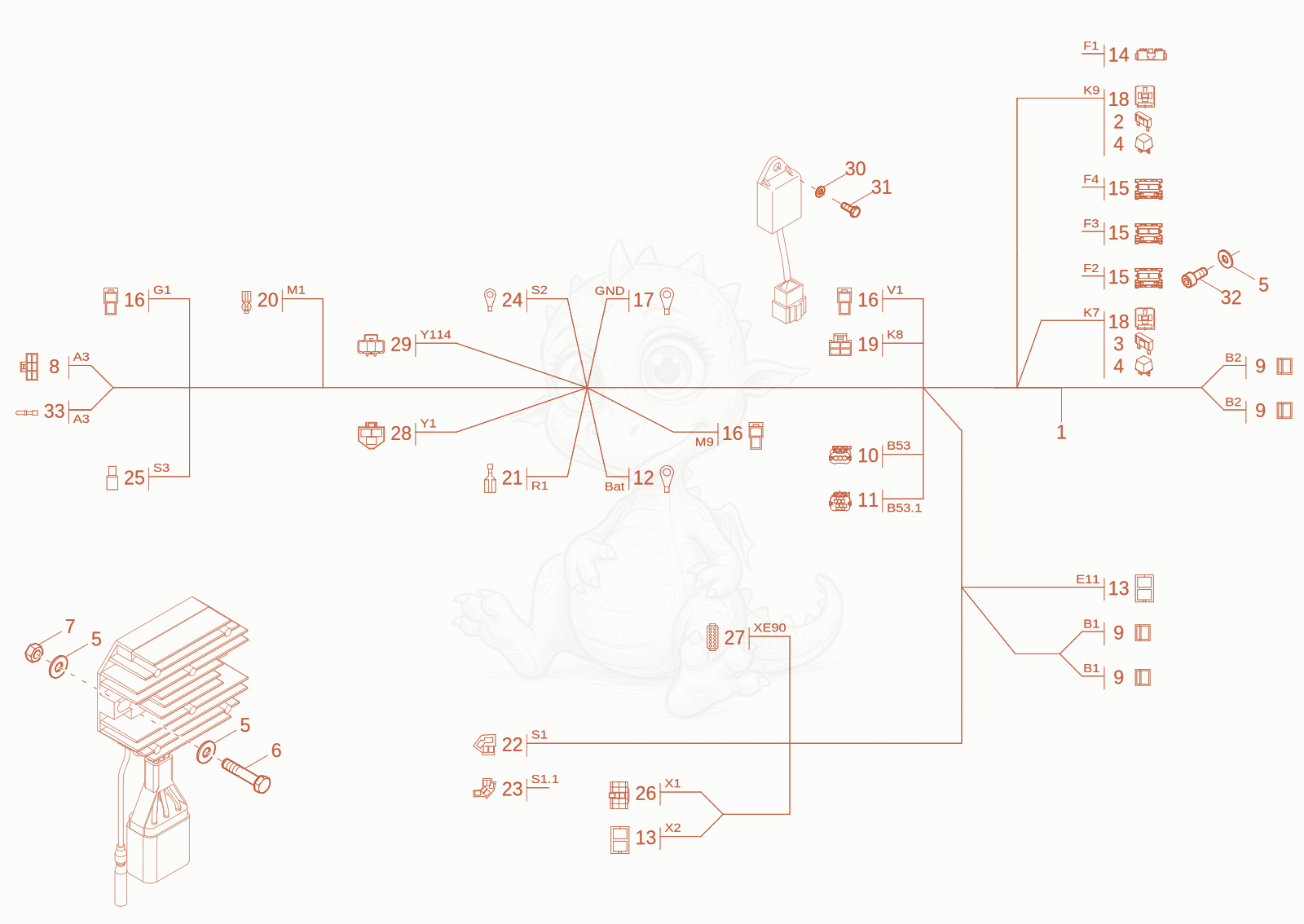

Exploded parts diagram of the WIRE HARNESS CHASSIS, ENGINE of a Wacker Neuson 803-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000287460
    $1,173.40
    wiring harness engine - 1000287460×1
  • 21000015302
    $3.50
    fuse - 1000015302×1
  • 31000085682
    $0.43
    fuse - 1000085682×3
  • 41000353650Not stocked
    relay×2
  • 51000094967
    $0.65
    Washer M5,3-DIN134 - 1000094967×6
  • 61000085380
    $0.03
    hex screw - 1000085380×2
  • 71000085581
    $1.51
    HEXAGON NUT - 1000085581×2
  • 81000105098
    $5.04
    plug sleeve housing - 1000105098×1
  • 91000027435Not stocked
    insulating sleeve×4
  • 101000260159
    $11.15
    bushing housing - 1000260159×1
  • 111000288405
    $14.40
    bushing housing - 1000288405×1
  • 121000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 131000095336Not stocked
    plug sleeve housing×2
  • 141000027186
    $10.05
    Bracket - 1000027186×1
  • 151000027193
    $3.31
    Bracket - 1000027193×3
  • 161000101072
    $0.75
    plug sleeve housing - 1000101072×3
  • 171000107754
    $2.77
    cable lug - 1000107754×1
  • 181000100546
    $3.91
    HOUSING - 1000100546×2
  • 191000051986Not stocked
    plug sleeve housing×1
  • 201000089776
    $1.67
    PLUG SLEEVE - 1000089776×1
  • 211000081742
    $2.88
    plug housing - 1000081742×1
  • 221000027368Not stocked
    central plug×1
  • 231000027386
    $6.47
    PLUG - 1000027386×1
  • 241000050027Not stocked
    cable lug×1
  • 251000027384Not stocked
    round socket sleeve×1
  • 261000095321
    $5.84
    bushing housing - 1000095321×1
  • 271000254182
    $29.32
    bushing housing - 1000254182×1
  • 281000167178
    $6.73
    PLUG SLEEVE HOUSING - 1000167178×1
  • 291000288403
    $17.31
    Bushing Housing - 1000288403×1
  • 301000015430Not stocked
    u-washer×1
  • 311000085382
    $0.70
    HEX SCREW - 1000085382×1
  • 321000085494
    $1.08
    allen screw M 5x12-8.8 A2C DIN912 - 1000085494×2
  • 331000027252Not stocked
    round socket×1
