803-2

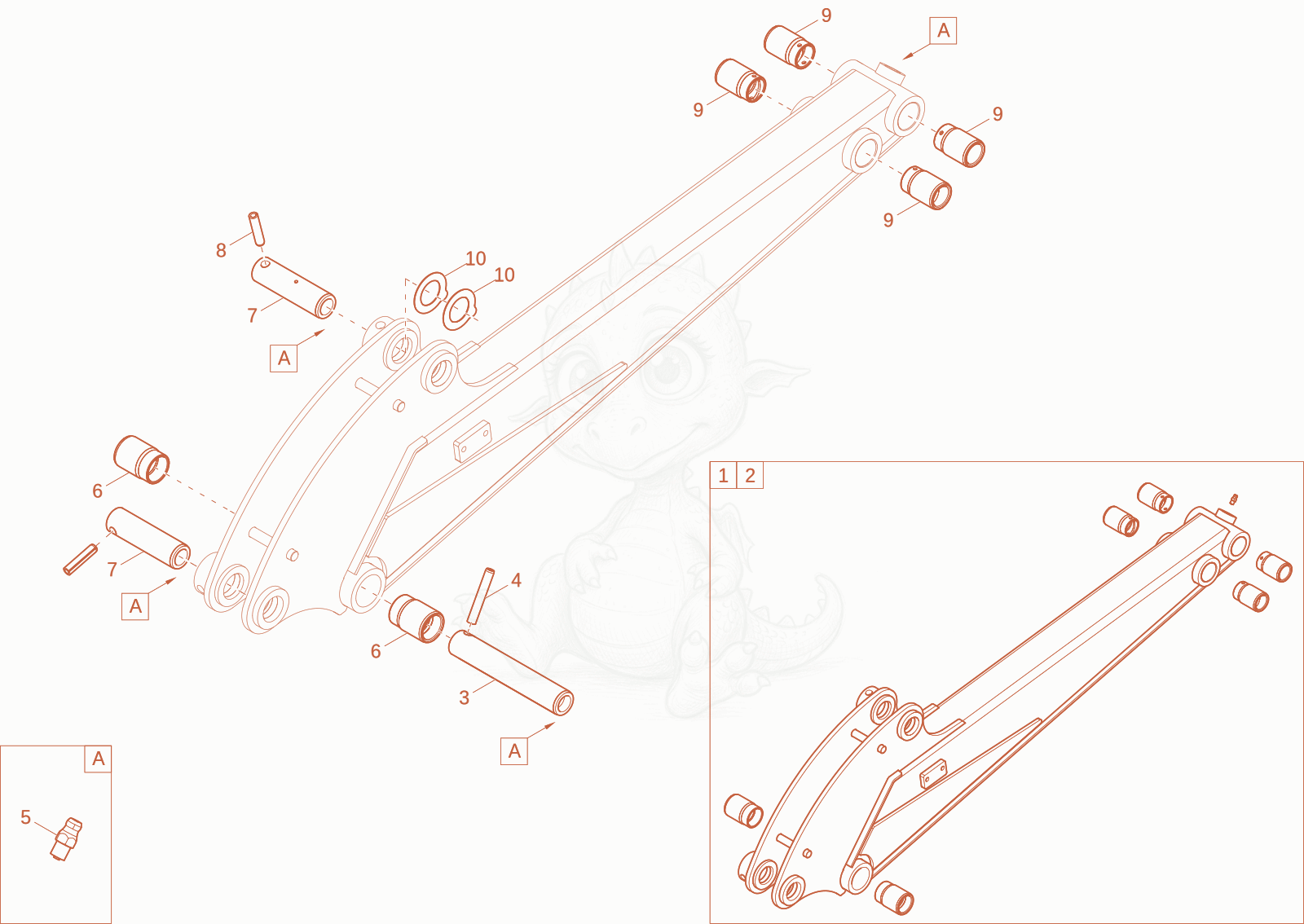

803-2 DIPPER ARM Diagram

Exploded parts diagram of the DIPPER ARM of a Wacker Neuson 803-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000360465Not stocked
    PRE-ASSEMBLED DIPPER ARM×1
  • 21000360466Not stocked
    PRE-ASSEMBLED DIPPER ARM×1
  • 31000150638
    $40.27
    PIN - 1000150638×1
  • 41000154258
    $3.15
    cotter pin - 1000154258×1
  • 51000015475Not stocked
    grease nipple×4
  • 61000150780
    $18.19
    STEEL BUSHING - 1000150780×2
  • 71000150639
    $57.97
    PIN - 1000150639×2
  • 81000154257
    $1.45
    cotter pin - 1000154257×2
  • 91000150791
    $30.89
    STEEL BUSHING - 1000150791×4
  • 101000521031Not stocked
    shim×2
