803-2

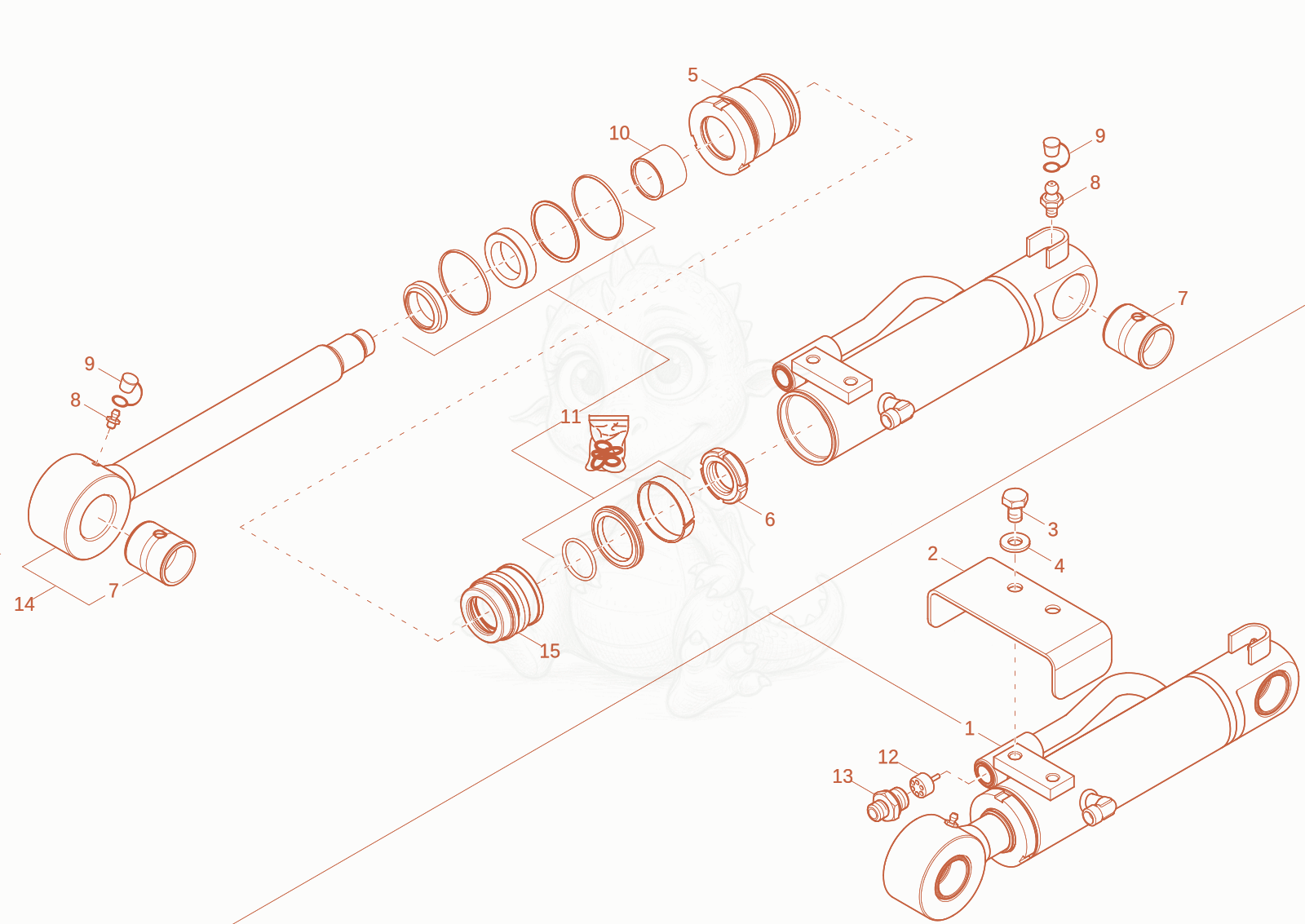

803-2 blade cylinder Diagram

Exploded parts diagram of the blade cylinder of a Wacker Neuson 803-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000420058Not stocked
    blade cylinder×1
  • 21000154027
    $67.66
    COVER - 1000154027×1
  • 31000013009Not stocked
    hex screw×2
  • 41000094974
    $0.70
    washer M10-DIN134 - 1000094974×2
  • 51000403744Not stocked
    guide bushing×1
  • 61000399498
    $38.26
    Nut - 1000399498×1
  • 71000403740
    $61.85
    Bushing - 1000403740×2
  • 81000015475Not stocked
    grease nipple×2
  • 91000015480Not stocked
    cap grease nipple×2
  • 101000403747Not stocked
    slide bearing×1
  • 111000403709Not stocked
    seal kit×1
  • 121000160899
    $65.37
    HOSE BURST PROTECTION - 1000160899×1
  • 131000015489Not stocked
    screw joint×1
  • 141000159621
    $519.08
    PISTON ROD - 1000159621×1
  • 151000403742
    $51.58
    Piston - 1000403742×1
