803-2

803-2 DIPPER ARM OPERATION Diagram

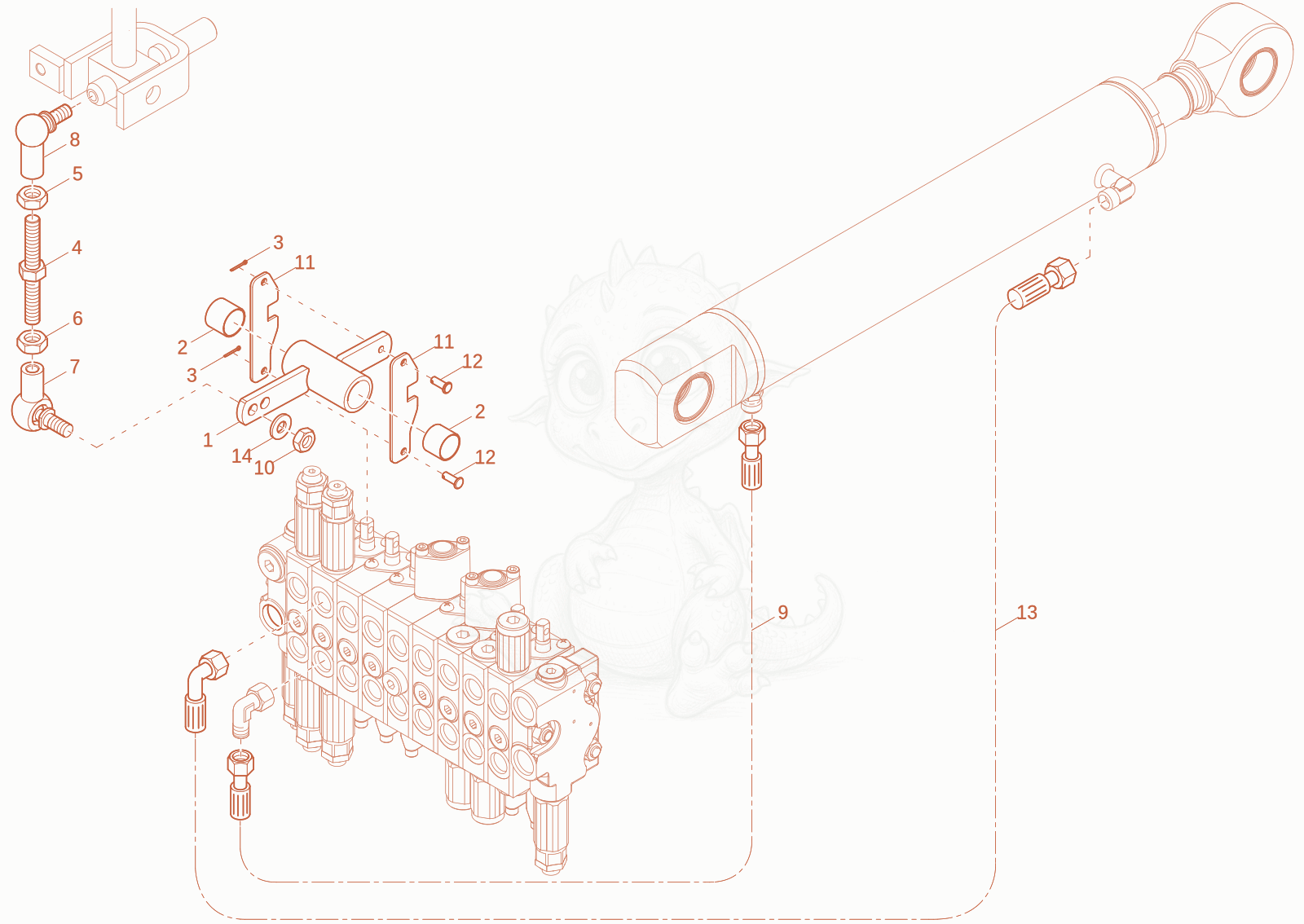

Exploded parts diagram of the DIPPER ARM OPERATION of a Wacker Neuson 803-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000280949
    $47.91
    control lever - 1000280949×1
  • 21000151242
    $9.90
    slide bearing 17x19x15 - 1000151242×2
  • 31000280926
    $1.22
    COTTERPIN - 1000280926×2
  • 41000428685Not stocked
    thread rod×1
  • 51000013021Not stocked
    hexagon nut×1
  • 61000128104
    $1.11
    nut M8LHA2C - 1000128104×1
  • 71000222383
    $8.59
    ball and socket AS13 - 1000222383×1
  • 81000280212
    $8.70
    7all and socket DIN71802-A13-M8L-CS-DK - 1000280212×1
  • 91000154303
    $71.78
    SLHYDR 2SC 6,0PN8 0 PN8 0 L1550 S0 - 1000154303×1
  • 101000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 111000249287
    $4.59
    plate - 1000249287×2
  • 121000150905
    $8.70
    PIN - 1000150905×2
  • 131000154302
    $76.80
    SLHYDR 2SC 6,0PN8 90 PN8 0 L1800 S0 - 1000154302×1
  • 141000015448Not stocked
    washer×1
