DT05

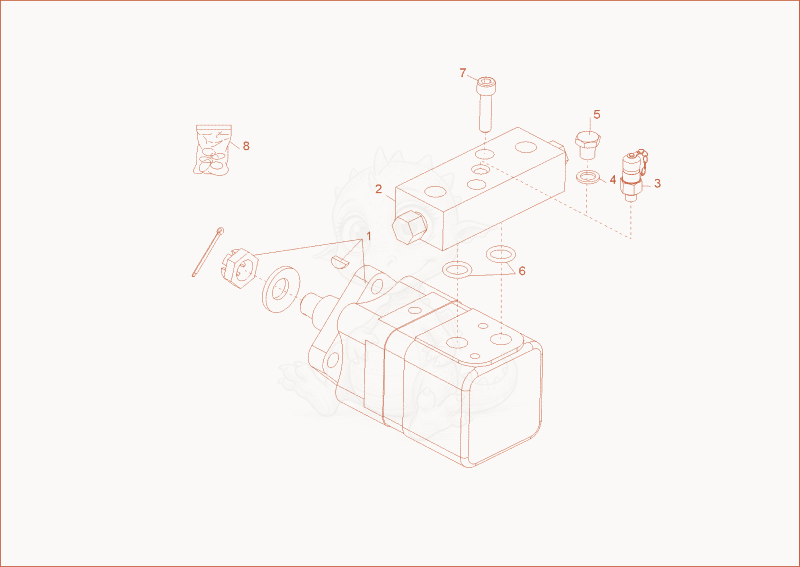

DT05 drive unit Diagram

Exploded parts diagram of the drive unit of a Wacker Neuson DT05, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000269538Not stocked
    hydraulic motor×2
  • 21000269535
    $754.69
    valve - 1000269535×2
  • 31000270647
    $59.68
    MINIMESS POINT - 1000270647×2
  • 41000083485
    $2.64
    copper ring - 1000083485×2
  • 51000270638
    $5.37
    LOCK PLUG - 1000270638×2
  • 61000095053
    $0.29
    O-RING - 1000095053×4
  • 71000085469
    $1.00
    cheese head screw - 1000085469×4
  • 81000269539
    $181.82
    seal kit hydraulic motor - 1000269539×2
