DT05

DT05 skip Diagram

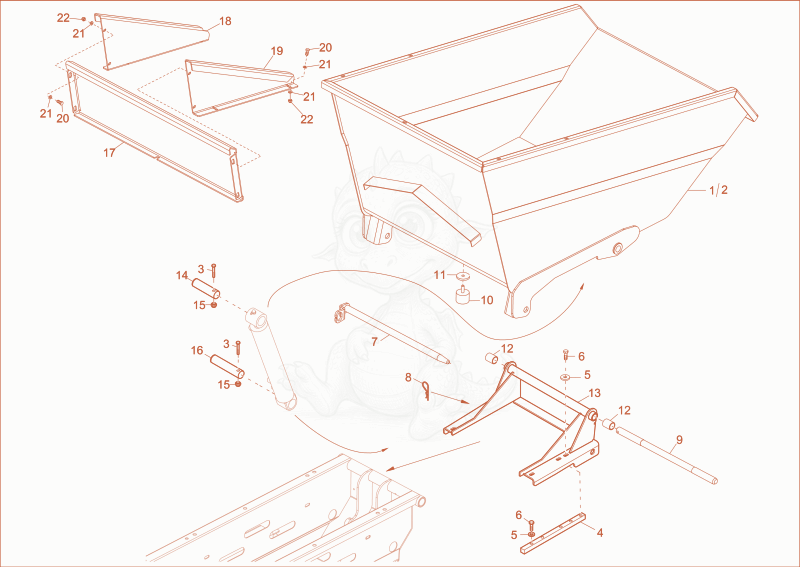

Exploded parts diagram of the skip of a Wacker Neuson DT05, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000389110Not stocked
    skip×1
  • 21000389111Not stocked
    skip×1
  • 31000085310
    $0.78
    hex screw - 1000085310×2
  • 41000314154Not stocked
    plate×2
  • 51000270734
    $4.07
    Washer - 1000270734×12
  • 61000085391
    $0.91
    hex screw - 1000085391×4
  • 71000275777Not stocked
    pin×1
  • 81000272072
    $1.55
    COTTERPIN - 1000272072×1
  • 91000272071Not stocked
    pin×1
  • 101000287104
    $26.75
    shock absorber - 1000287104×2
  • 111000271909
    $4.95
    WASHER - 1000271909×2
  • 121000270024
    $38.34
    BUSHING - 1000270024×2
  • 131000353491Not stocked
    swivel console×1
  • 141000270731
    $38.91
    PIN - 1000270731×1
  • 151000269276
    $1.24
    HEXAGON NUT - 1000269276×2
  • 161000353278
    $31.99
    PIN - 1000353278×1
  • 171000321906Not stocked
    bulk plate×1
  • 181000276616
    $88.73
    Bulkplate 1000276616×1
  • 191000276618
    $88.73
    Bulkplate 1000276618×1
  • 201000085382
    $0.70
    HEX SCREW - 1000085382×9
  • 211000015430Not stocked
    u-washer×18
  • 221000269276
    $1.24
    HEXAGON NUT - 1000269276×9
