DT05

DT05 UNDERCARRIAGE Diagram

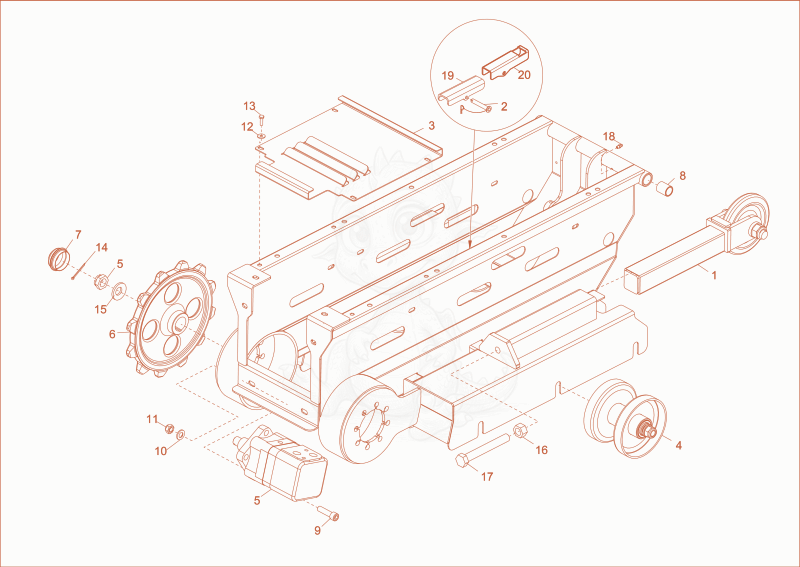

Exploded parts diagram of the UNDERCARRIAGE of a Wacker Neuson DT05, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000395887Not stocked
    track tensioner complete×2
  • 21000278260
    $53.15
    PIN - 1000278260×1
  • 31000269691Not stocked
    cover plate×1
  • 41000381708
    $474.72
    roller - 1000381708×6
  • 51000269538Not stocked
    hydraulic motor×2
  • 61000321788Not stocked
    drive wheel×2
  • 71000269672
    $8.67
    COVER CAP - 1000269672×2
  • 81000270024
    $38.34
    BUSHING - 1000270024×2
  • 91000085477
    $3.56
    cheese head screw - 1000085477×8
  • 101000082611
    $0.90
    washer 13 A2C DIN6916 - 1000082611×8
  • 111000020127Not stocked
    hexagon nut×8
  • 121000383668
    $1.24
    washer - 1000383668×4
  • 131000018400Not stocked
    hex screw×4
  • 141000262351
    $1.55
    COTTERPIN - 1000262351×2
  • 151000272076
    $13.40
    LOCK WASHER - 1000272076×2
  • 161000048984Not stocked
    hexagon nut×2
  • 171000271021
    $10.31
    HEX SCREW - 1000271021×2
  • 181000015475Not stocked
    grease nipple×1
  • 191000321849
    $65.89
    BRACKET - 1000321849×1
  • 201000314155Not stocked
    LOCK×1
