DT05

DT05 STEP PLATE Diagram

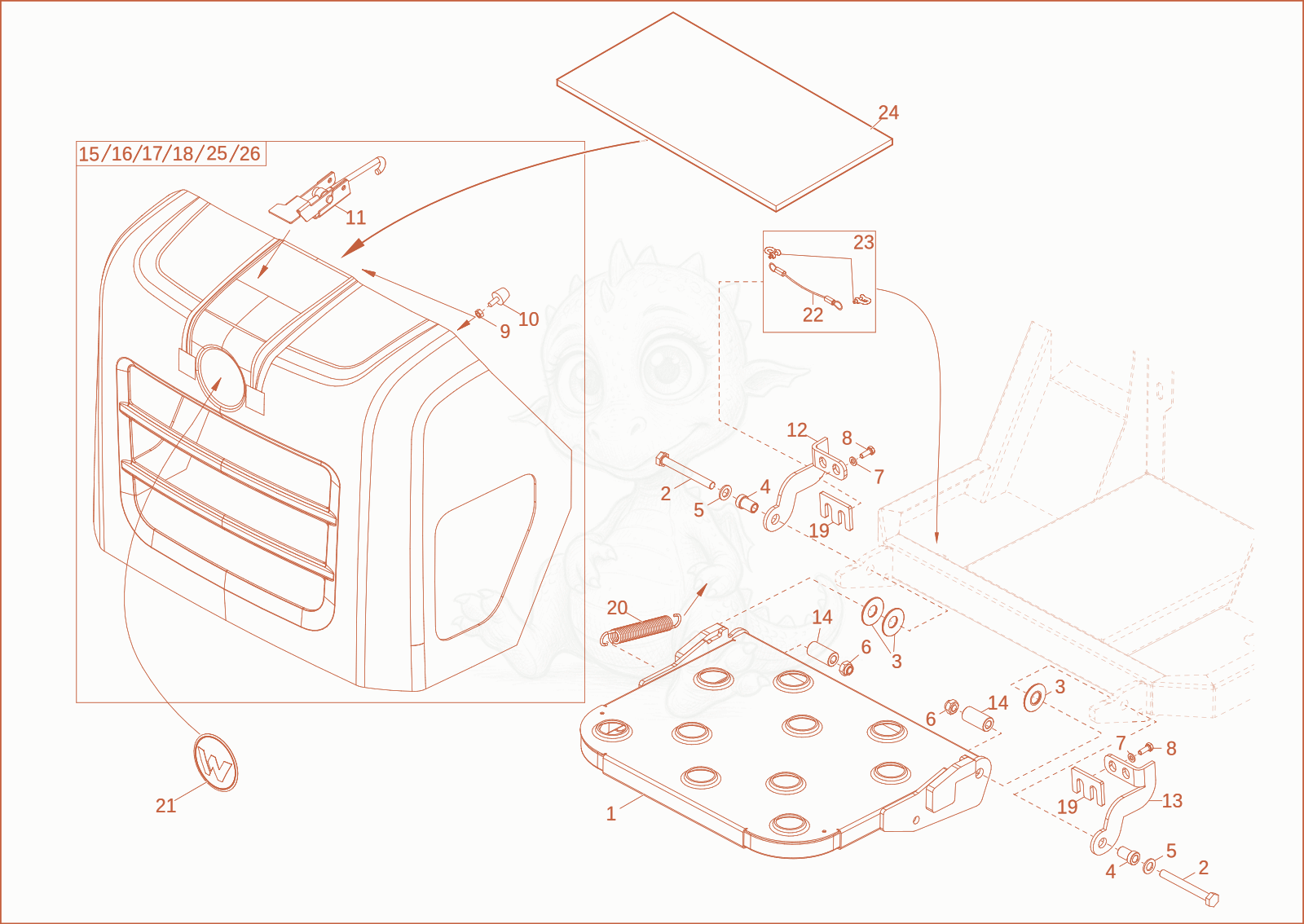

Exploded parts diagram of the STEP PLATE of a Wacker Neuson DT05, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000270725
    $196.00
    Stepplate 1000270725×1
  • 21000085357
    $1.08
    hex screw - 1000085357×2
  • 31000270677
    $4.95
    DISC SPRING - 1000270677×3
  • 41000270676
    $28.68
    distance piece - 1000270676×2
  • 51000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 61000269291
    $1.55
    HEXAGON NUT - 1000269291×2
  • 71000015430Not stocked
    u-washer×4
  • 81000085382
    $0.70
    HEX SCREW - 1000085382×4
  • 91000015405Not stocked
    hexagon nut×2
  • 101000270125
    $17.34
    RUBBER BUFFER - 1000270125×2
  • 111000270728
    $255.19
    LOCK HOOK - 1000270728×1
  • 121000321790Not stocked
    holder×1
  • 131000321841Not stocked
    holder×1
  • 141000275865
    $18.65
    distance piece - 1000275865×2
  • 151000336906Not stocked
    engine hood×1
  • 161000344706Not stocked
    engine hood×1
  • 171000395855Not stocked
    engine hood×1
  • 181000395856Not stocked
    engine hood×1
  • 191000321843Not stocked
    distance piece×6
  • 201000272176
    $9.56
    tension spring - 1000272176×1
  • 211000189891
    $65.27
    badge - 1000189891×1
  • 221000279320
    $59.50
    STEEL CORD - 1000279320×1
  • 231000279517Not stocked
    holder×2
  • 241000283857Not stocked
    insulating mat×1
  • 251000336910Not stocked
    engine hood×1
  • 261000344707Not stocked
    engine hood×1
