DV45 wiring harness (Option) Diagram

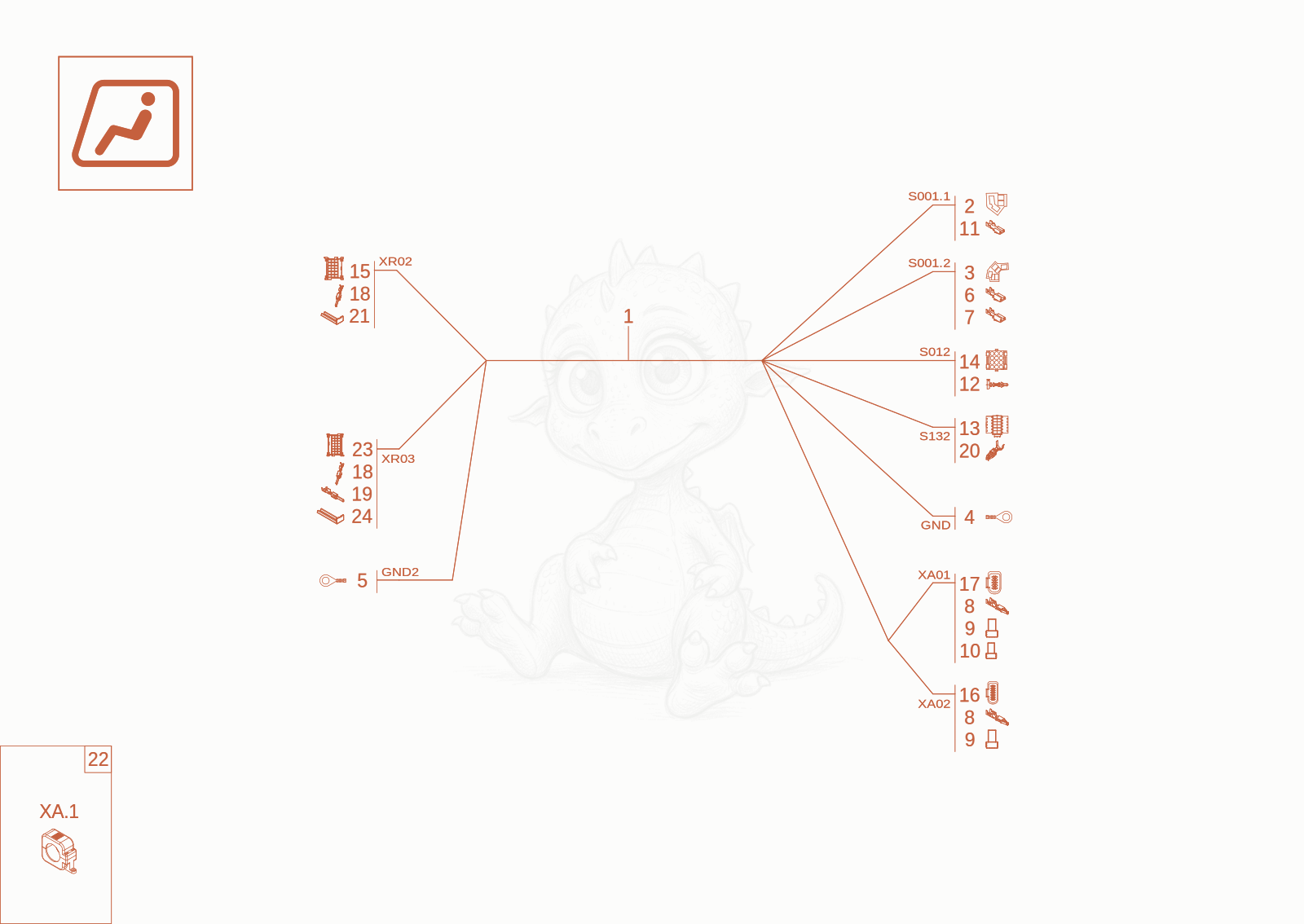

Exploded parts diagram of the wiring harness (Option) of a Wacker Neuson DV45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000514202Not stocked
    wiring harness×1
  • 21000027368Not stocked
    central plug×1
  • PLUG - 1000027386×1
  • 41000050027Not stocked
    cable lug×1
  • 51000050028Not stocked
    cable lug×1
  • plug sleeve - 1000095370×5
  • 71000095371Not stocked
    plug sleeve×1
  • CONTACT - 1000104732×18
  • seal - 1000104738×18
  • 101000104740
    $1.41
    lock plug - 1000104740×6
  • 111000107750
    $5.41
    plug sleeve - 1000107750×4
  • 121000107779
    $0.39
    BUSHING CONTACT - 1000107779×10
  • 131000103949
    $5.74
    bushing housing - 1000103949×1
  • 141000334439Not stocked
    bushing housing×1
  • 151000346744Not stocked
    pin housing×1
  • 161000347542Not stocked
    housing×1
  • 171000347631Not stocked
    housing×1
  • 181000364588Not stocked
    pin contact×23
  • 191000379118Not stocked
    pin contact×5
  • 201000432365Not stocked
    timer contact×6
  • 211000443065Not stocked
    locking×1
  • 221000470177Not stocked
    KLAPPFERRIT 7427155×1
  • 231000514380Not stocked
    pin housing×1
  • 241000514771Not stocked
    locking×1
