DV45

DV45 power socket (Option) Diagram

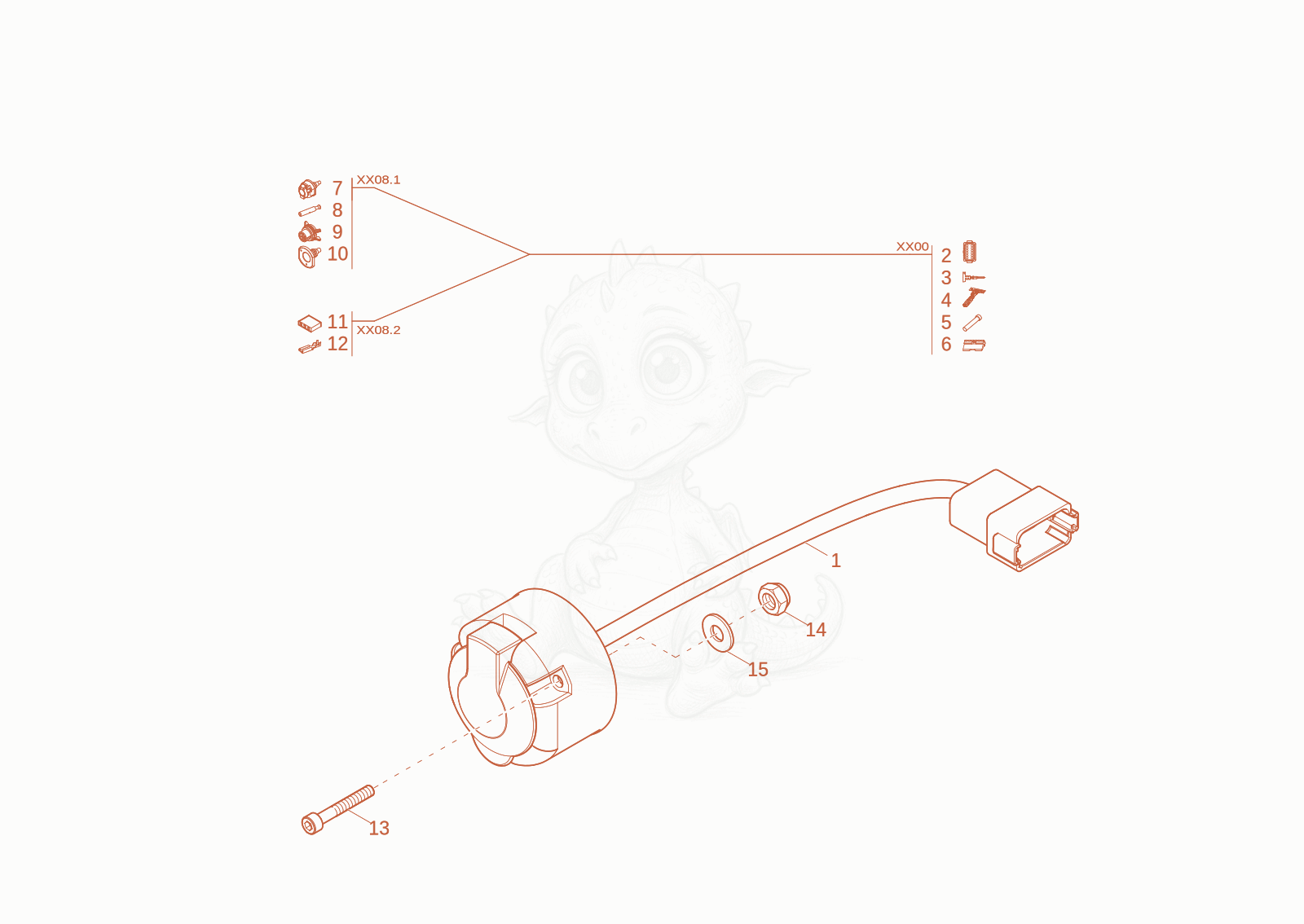

Exploded parts diagram of the power socket (Option) of a Wacker Neuson DV45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000526715Not stocked
    cable×1
  • 21000105124
    $36.42
    pin housing - 1000105124×1
  • 31000309282Not stocked
    pin contact×1
  • 41000362407Not stocked
    pin contact×9
  • 51000030446Not stocked
    plug×2
  • 61000085012
    $13.79
    LOCKING PIN - 1000085012×1
  • 71000526839Not stocked
    socket×1
  • 81000526884Not stocked
    bushing contact×7
  • 91000526896Not stocked
    insert×1
  • 101000526897Not stocked
    seal×1
  • 111000526898Not stocked
    bushing housing×1
  • 121000526899Not stocked
    plug sleeve×3
  • 131000082410
    $3.27
    CHEESE HEAD SCREW - 1000082410×3
  • 141000085587
    $0.03
    HEXAGON NUT - 1000085587×3
  • 151000094967
    $0.65
    Washer M5,3-DIN134 - 1000094967×3
