DV45

DV45 drive lock (Option) Diagram

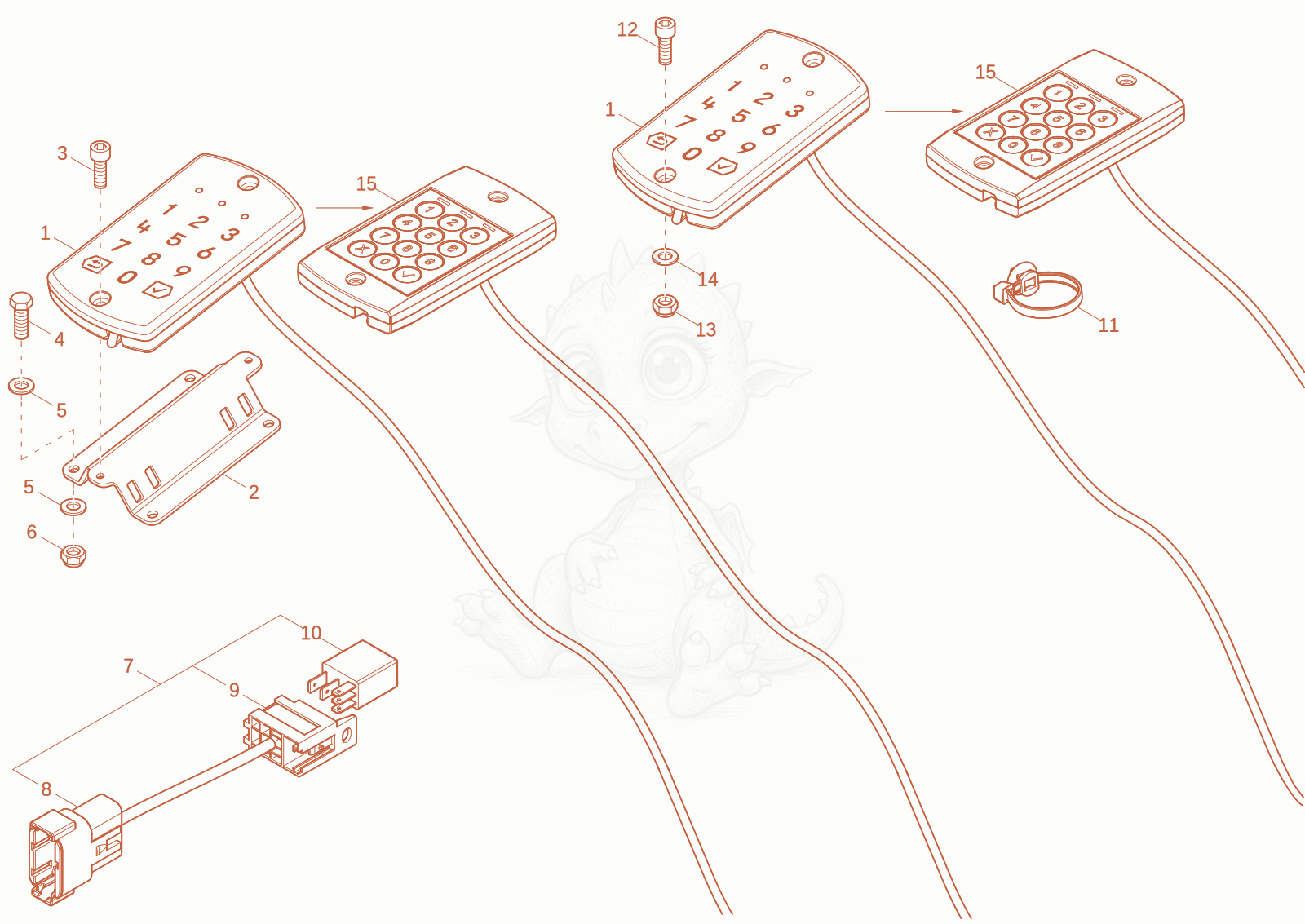

Exploded parts diagram of the drive lock (Option) of a Wacker Neuson DV45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000400226
    $310.45
    keypad Access Control - 1000400226×1
  • 21000466232
    $50.56
    bracket - 1000466232×1
  • 31000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×2
  • 41000085375
    $0.69
    hex screw - 1000085375×4
  • 51000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×8
  • 61000082547
    $0.88
    nut M4-8 A2C-DIN985 - 1000082547×4
  • 71000447816Not stocked
    cable×1
  • 81000240116
    $39.91
    Pin housing - 1000240116×1
  • 91000114134
    $7.01
    SOCKETS - 1000114134×1
  • 101000333390Not stocked
    relay×1
  • 111000090083
    $2.13
    Cable strap T80IFT6 - 1000090083×2
  • 121000085450
    $0.70
    cheese head screw - 1000085450×2
  • 131000082547
    $0.88
    nut M4-8 A2C-DIN985 - 1000082547×2
  • 141000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×2
  • 151000533358Not stocked
    keypad×1
