DV45

DV45 seat console Diagram

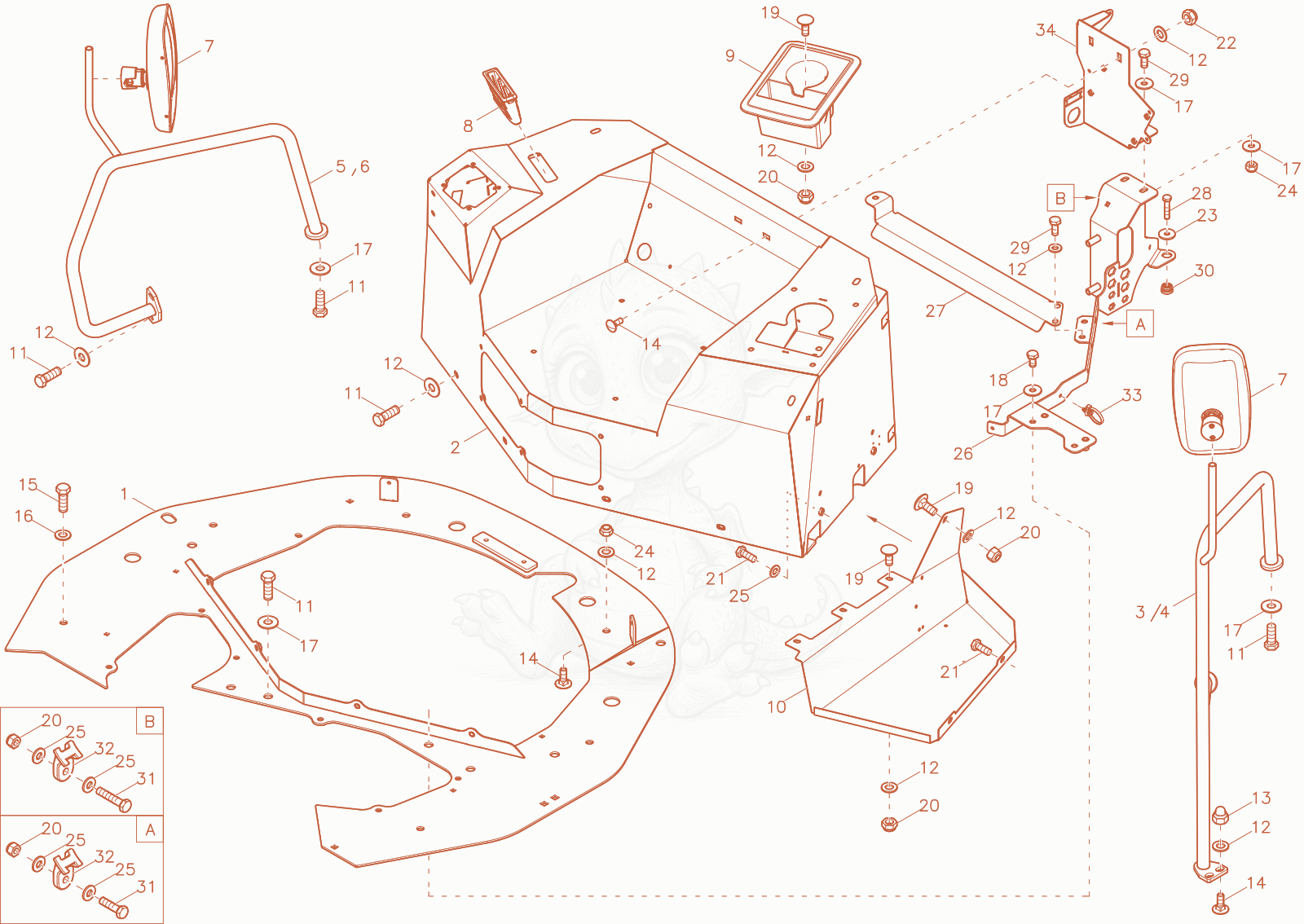

Exploded parts diagram of the seat console of a Wacker Neuson DV45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000481608Not stocked
    track shoe×1
  • 21000517178Not stocked
    seat console×1
  • 31000498937Not stocked
    Handrail×1
  • 41000481600Not stocked
    Handrail×1
  • 51000498938Not stocked
    Handrail×1
  • 61000481601Not stocked
    Handrail×1
  • 71000264124
    $82.20
    mirror - 1000264124×2
  • 81000486923Not stocked
    board×1
  • 91000425596
    $106.94
    Bracket - 1000425596×1
  • 101000517179Not stocked
    board×1
  • 111000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×11
  • 121000094974
    $0.70
    washer M10-DIN134 - 1000094974×22
  • 131000049153Not stocked
    hexagon nut×2
  • 141000404696Not stocked
    flat head screw×6
  • 151000047902Not stocked
    hex screw×5
  • 161000015453Not stocked
    northlock disc×8
  • 171000015442Not stocked
    u-washer×11
  • 181000015364Not stocked
    hex screw×3
  • 191000085557
    $0.78
    flat head screw - 1000085557×5
  • 201000357534Not stocked
    hexagon nut×7
  • 211000019136Not stocked
    hex screw×2
  • 221000015407Not stocked
    hexagon nut×2
  • 231000085607
    $0.73
    washer - 1000085607×1
  • 241000357535Not stocked
    hexagon nut×4
  • 251000015448Not stocked
    washer×4
  • 261000503244Not stocked
    bracket hose×1
  • 271000503243Not stocked
    profile×1
  • 281000015359Not stocked
    hex screw×1
  • 291000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 301000438904Not stocked
    rubber buffer×1
  • 311000431384Not stocked
    screw×2
  • 321000378385Not stocked
    sockets×2
  • 331000375997Not stocked
    fixing bracket×5
  • 341000494990Not stocked
    bracket×1
