DV45

DV45 pilot stand Diagram

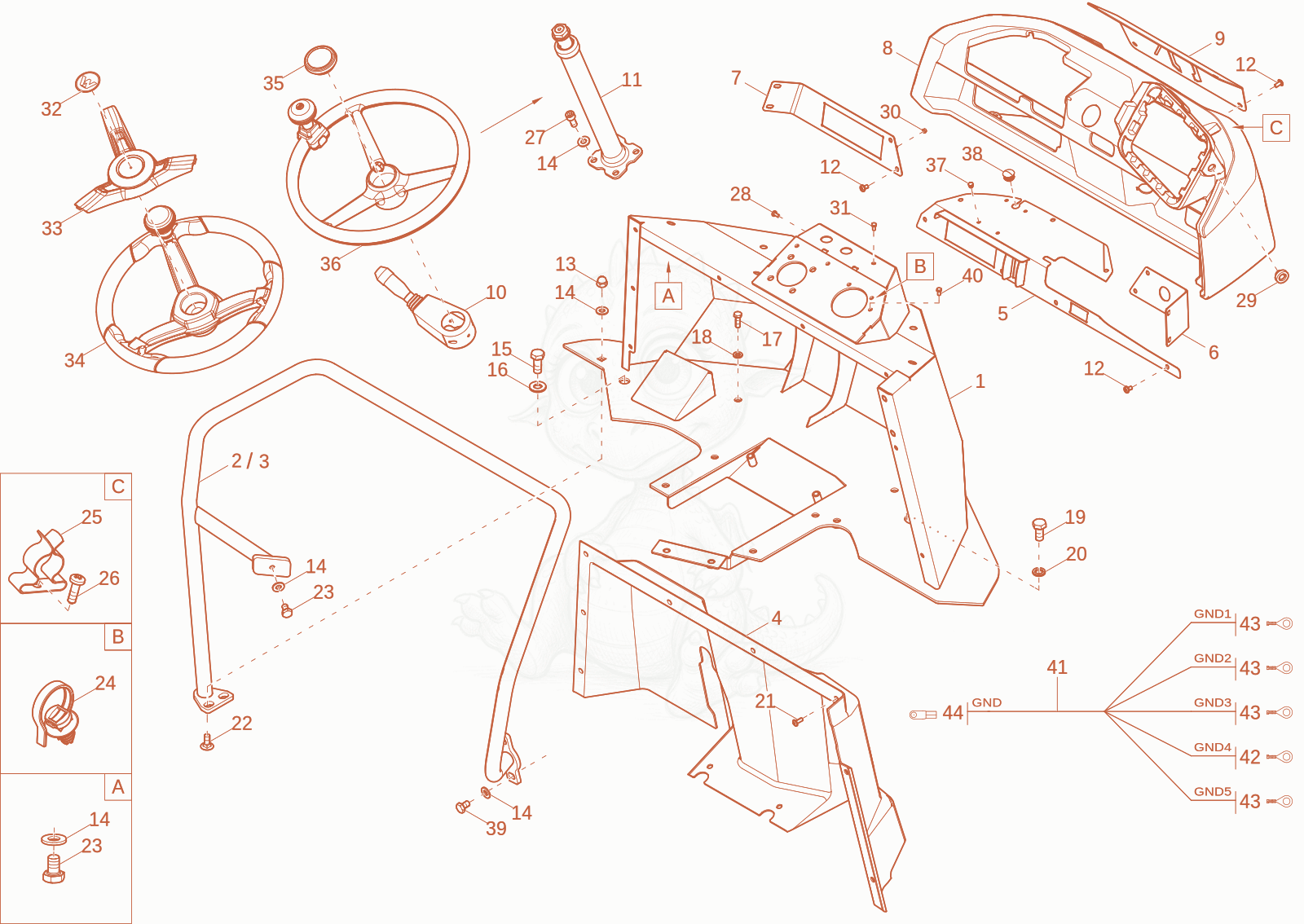

Exploded parts diagram of the pilot stand of a Wacker Neuson DV45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000481604Not stocked
    pilot stand×1
  • 21000498939Not stocked
    Handrail×1
  • 31000481603Not stocked
    Handrail×1
  • 41000481607Not stocked
    trim×1
  • 51000496557Not stocked
    plate×1
  • 61000496559Not stocked
    cover×1
  • 71000496558Not stocked
    strap×1
  • 81000481605Not stocked
    pilot stand×1
  • 91000496556Not stocked
    cover×1
  • 101000378383Not stocked
    steeringstick switch×1
  • 111000481602Not stocked
    steering column×1
  • 121000326519Not stocked
    flat head screw×19
  • 131000049153Not stocked
    hexagon nut×2
  • 141000094974
    $0.70
    washer M10-DIN134 - 1000094974×14
  • 151000047902Not stocked
    hex screw×2
  • 161000095003
    $2.13
    NORTHLOCK DISC - 1000095003×2
  • 171000015343Not stocked
    hex screw×2
  • 181000015448Not stocked
    washer×2
  • 191000020983Not stocked
    hex screw×2
  • 201000015453Not stocked
    northlock disc×2
  • 211000326518Not stocked
    flat head screw×10
  • 221000404696Not stocked
    flat head screw×2
  • 231000013009Not stocked
    hex screw×6
  • 241000375997Not stocked
    fixing bracket×4
  • 251000410704
    $4.06
    clip - 1000410704×1
  • 261000153221
    $0.04
    screw - 1000153221×1
  • 271000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×4
  • 281000085547
    $0.94
    flat head screw - 1000085547×2
  • 291000403974
    $63.49
    sleeve - 1000403974×2
  • 301000085587
    $0.03
    HEXAGON NUT - 1000085587×4
  • 311000085377
    $0.68
    hex screw - 1000085377×1
  • 321000234336
    $39.40
    Sticker - 1000234336×2
  • 331000479493
    $39.70
    CAP - 1000479493×1
  • 341000496513
    $120.76
    STEERING WHEEL - 1000496513×1
  • 351000198962
    $6.08
    cover cap - 1000198962×1
  • 361000310966Not stocked
    steering wheel×1
  • 371000327361Not stocked
    plug×4
  • 381000279891
    $1.65
    PLUG - 1000279891×1
  • 391000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 401000085549
    $0.78
    ovalhead screw - 1000085549×1
  • 411000516941Not stocked
    earth cable×1
  • 421000050027Not stocked
    cable lug×1
  • 431000110764
    $9.03
    cable lug - 1000110764×4
  • 441000128451
    $4.19
    cable lug - 1000128451×1
