DW15

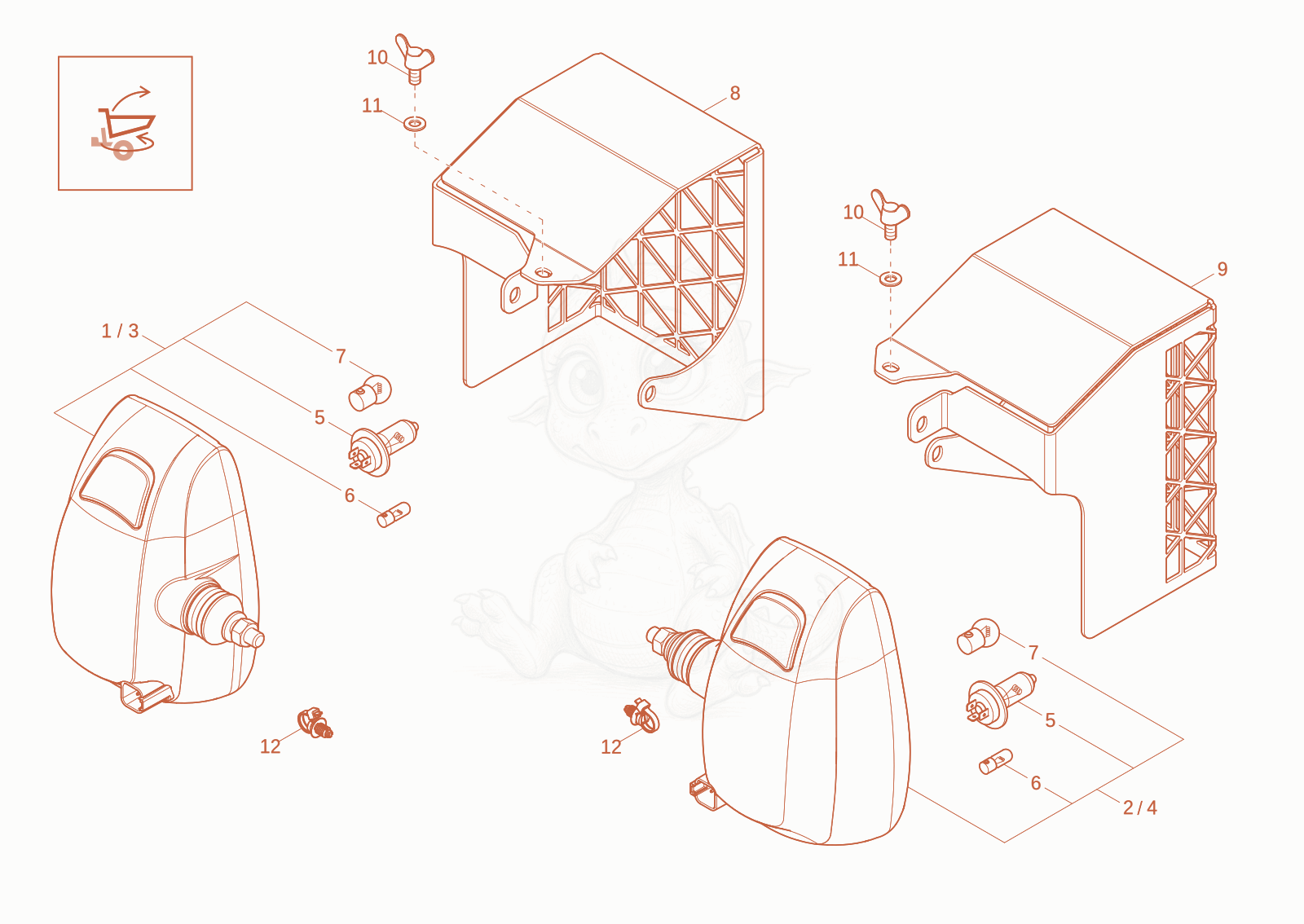

DW15 lighting (option) Diagram

Exploded parts diagram of the lighting (option) of a Wacker Neuson DW15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000419105Not stocked
    main headlight×1
  • 21000419106Not stocked
    main headlight×1
  • 31000506980
    $85.30
    main headlight - 1000506980×1
  • 41000506981
    $85.30
    main headlight - 1000506981×1
  • 51000430198Not stocked
    halogen bulb×2
  • 61000430195Not stocked
    bulb×2
  • 71000430197Not stocked
    halogen bulb×2
  • 81000519652Not stocked
    light protection screen×1
  • 91000519655Not stocked
    light protection screen×1
  • 101000085567
    $1.63
    THUMB SCREW - 1000085567×6
  • 111000015448Not stocked
    washer×6
  • 121000375997Not stocked
    fixing bracket×2
