DW15

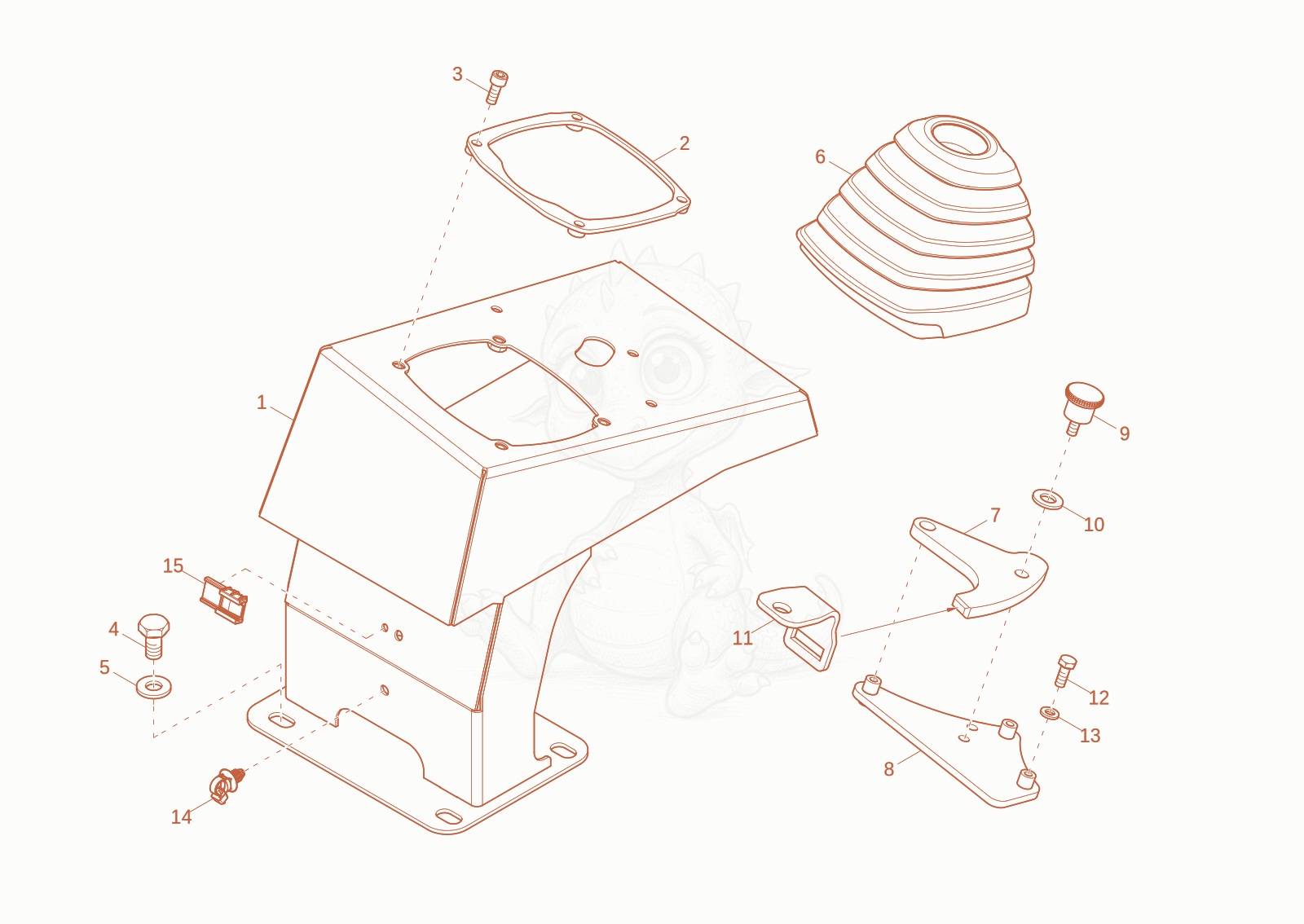

DW15 control bracket Diagram

Exploded parts diagram of the control bracket of a Wacker Neuson DW15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000528803Not stocked
    console control×1
  • 21000424418Not stocked
    fixing plate×1
  • 31000085455
    $0.81
    allen screw M6x16-8.8 A2C - 1000085455×4
  • 41000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 51000094974
    $0.70
    washer M10-DIN134 - 1000094974×4
  • 61000341333
    $45.32
    bellow - 1000341333×1
  • 71000533135Not stocked
    locking sheet×1
  • 81000387207
    $144.56
    plate - 1000387207×1
  • 91000247956
    $27.90
    pin detent - 1000247956×1
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×1
  • 111000426257Not stocked
    locking lever×1
  • 121000085382
    $0.70
    HEX SCREW - 1000085382×3
  • 131000015430Not stocked
    u-washer×3
  • 141000375997Not stocked
    fixing bracket×1
  • 151000293439Not stocked
    clip×1
