DW15

DW15 skip (option) Diagram

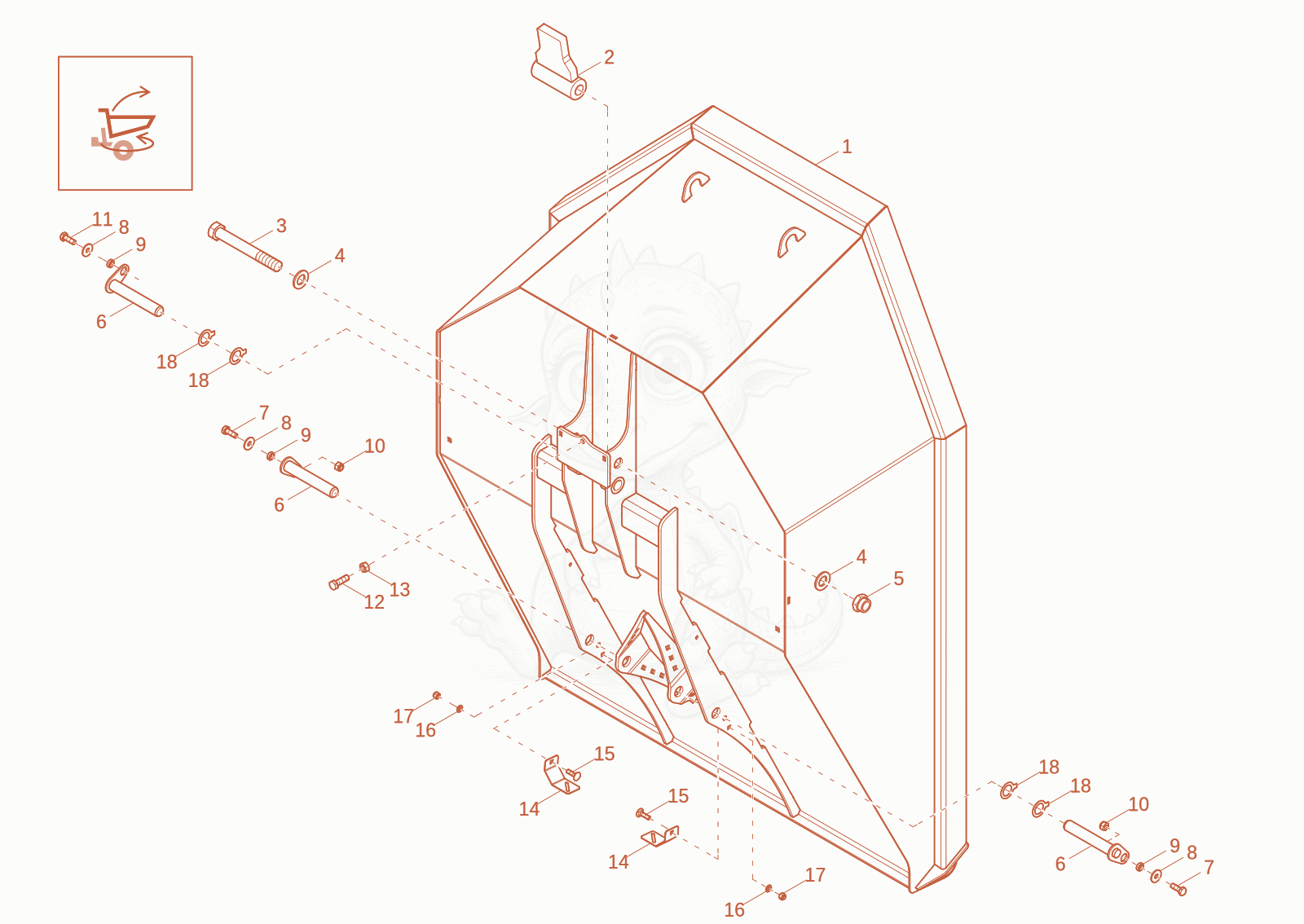

Exploded parts diagram of the skip (option) of a Wacker Neuson DW15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000548281Not stocked
    powerswivel×1
  • 21000509195Not stocked
    swivel lock×1
  • 31000396925Not stocked
    hex screw×1
  • 41000015441
    $0.98
    WASHER - 1000015441×2
  • 51000389603
    $3.98
    screw - 1000389603×1
  • 61000515851Not stocked
    pin×3
  • 71000015364Not stocked
    hex screw×2
  • 81000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×3
  • 91000151025
    $3.03
    washer 18/12x5 - 1000151025×3
  • 101000357535Not stocked
    hexagon nut×2
  • 111000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
  • 121000015372Not stocked
    hex screw×1
  • 131000015415Not stocked
    hexagon nut×1
  • 141000487410Not stocked
    bracket×2
  • 151000431384Not stocked
    screw×2
  • 161000448202Not stocked
    u-washer×2
  • 171000357534Not stocked
    hexagon nut×2
  • 181000526723Not stocked
    shim×4
