DW15

DW15 Rear CHÂSSIS Diagram

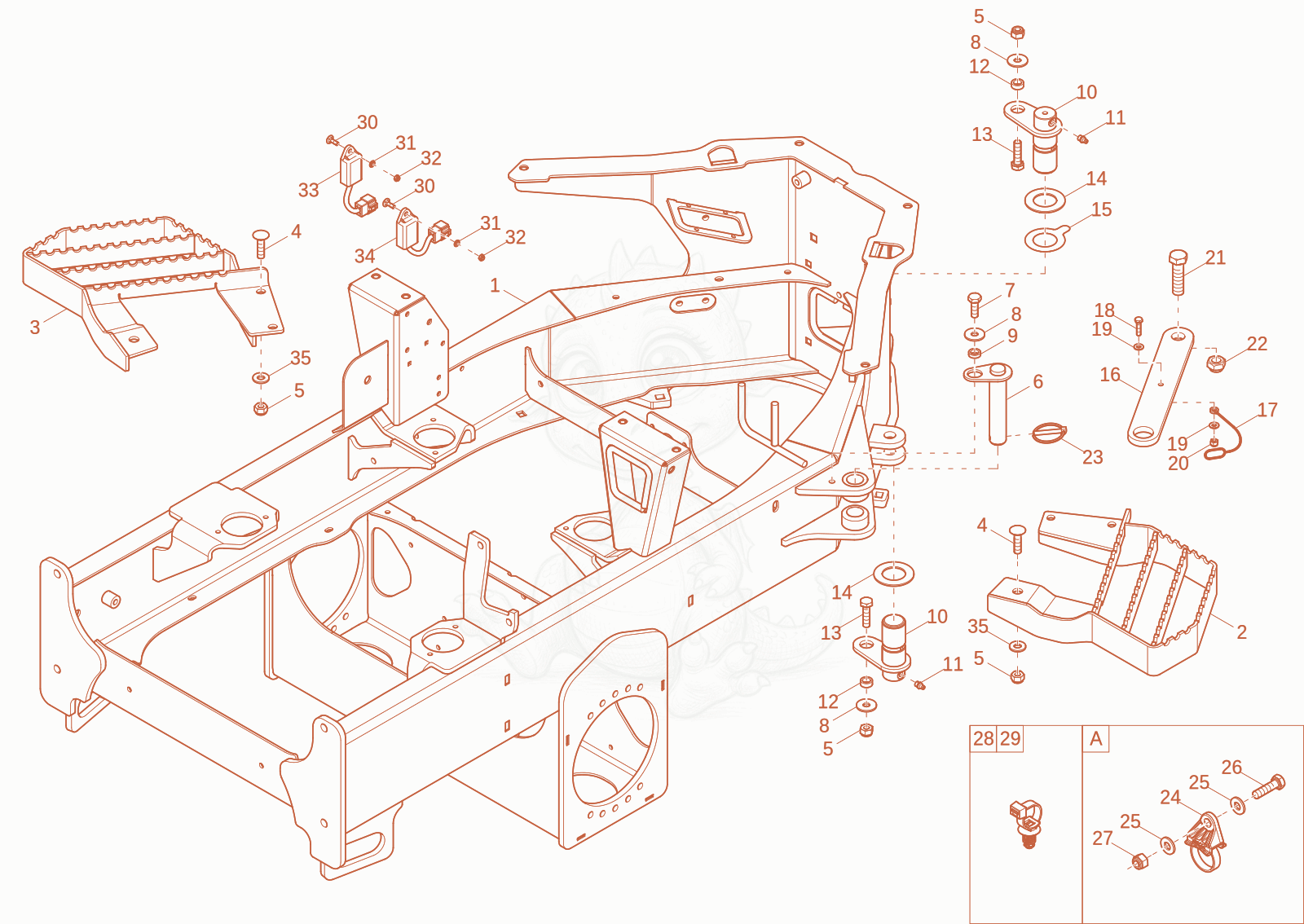

Exploded parts diagram of the Rear CHÂSSIS of a Wacker Neuson DW15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000548012Not stocked
    frame×1
  • 21000559973Not stocked
    foot step×1
  • 31000559976Not stocked
    foot step×1
  • 41000443941Not stocked
    flat head screw×6
  • 51000357535Not stocked
    hexagon nut×8
  • 61000511100Not stocked
    steering ram pin×1
  • 71000015364Not stocked
    hex screw×1
  • 81000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×3
  • 91000151025
    $3.03
    washer 18/12x5 - 1000151025×1
  • 101000537407Not stocked
    pin×2
  • 111000015476Not stocked
    grease nipple×2
  • 121000325117
    $3.53
    washer - 1000325117×2
  • 131000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×2
  • 141000113206Not stocked
    washer×2
  • 151000545483Not stocked
    shim×2
  • 161000512289Not stocked
    buckle support×1
  • 171000082230
    $3.67
    FIXING STRAP - 1000082230×1
  • 181000085384
    $0.84
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×1
  • 191000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 201000357533Not stocked
    hexagon nut×1
  • 211000085337
    $1.94
    hex screw - 1000085337×1
  • 221000020788Not stocked
    hexagon nut×1
  • 231000015457Not stocked
    cotter pin×1
  • 241000357426Not stocked
    sockets×6
  • 251000015448Not stocked
    washer×12
  • 261000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×5
  • 271000357534Not stocked
    hexagon nut×6
  • 281000375997Not stocked
    fixing bracket×12
  • 291000398445
    $0.78
    Cable strap T50SDSBS5 - 1000398445×2
  • 301000301335
    $0.75
    door strap screw - 1000301335×2
  • 311000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×2
  • 321000085587
    $0.03
    HEXAGON NUT - 1000085587×2
  • 331000398308Not stocked
    resistor×1
  • 341000148380
    $174.57
    TIME RELAY - 1000148380×1
  • 351000094974
    $0.70
    washer M10-DIN134 - 1000094974×6
