DW15

DW15 lift arm Diagram

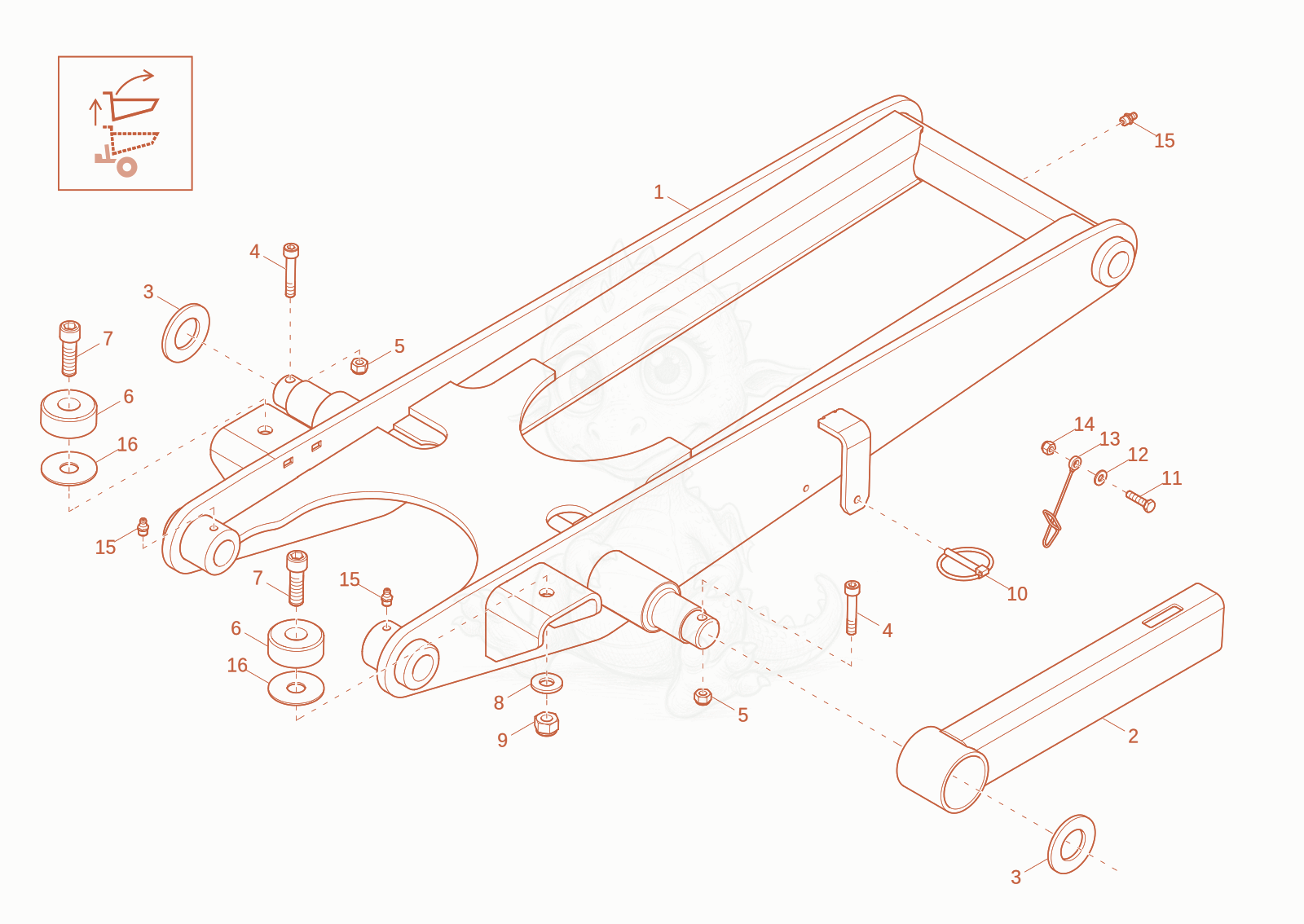

Exploded parts diagram of the lift arm of a Wacker Neuson DW15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000548273Not stocked
    lift arm×1
  • 21000512701Not stocked
    support×1
  • 31000082638
    $0.73
    washer 13 -DIN134 - 1000082638×2
  • 41000082296
    $0.93
    cheese head screw M8x45-8.8 Dacro DIN912 - 1000082296×2
  • 51000357534Not stocked
    hexagon nut×2
  • 61000064951Not stocked
    bucket support×2
  • 71000085476
    $1.13
    cheese head screw - 1000085476×2
  • 81000400782
    $3.07
    WASHER - 1000400782×2
  • 91000357536Not stocked
    hexagon nut×2
  • 101000015457Not stocked
    cotter pin×1
  • 111000085384
    $0.84
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×1
  • 121000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×1
  • 131000082230
    $3.67
    FIXING STRAP - 1000082230×1
  • 141000357533Not stocked
    hexagon nut×1
  • 151000015476Not stocked
    grease nipple×3
  • 161000094712
    $1.91
    washer - 1000094712×2
