DW50

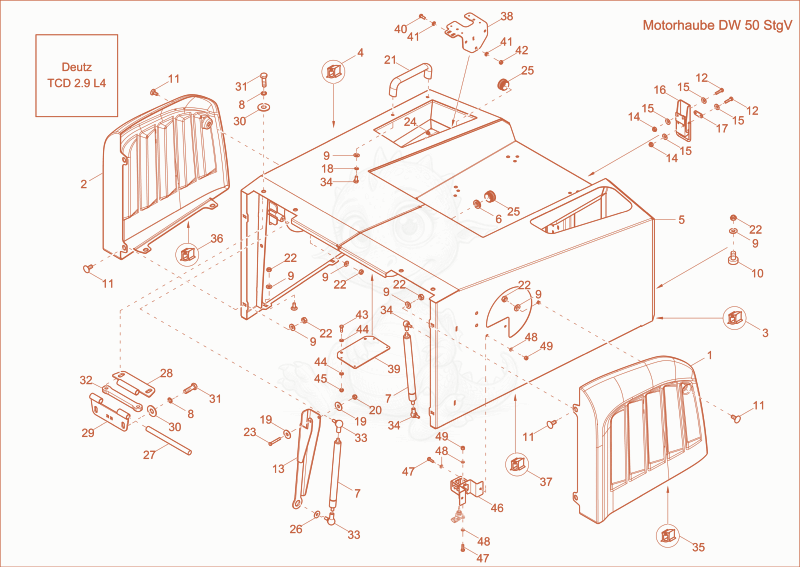

DW50 engine hood (option) Diagram

Exploded parts diagram of the engine hood (option) of a Wacker Neuson DW50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000440697Not stocked
    engine hood×1
  • 21000440698Not stocked
    engine hood×1
  • 31000097930
    $26.59
    RUBBER PROFILE - 1000097930×0.61
  • 41000097930
    $26.59
    RUBBER PROFILE - 1000097930×0.66
  • 51000417353Not stocked
    engine hood×1
  • 61000274374
    $17.59
    rubber sleeve - 1000274374×1
  • 71000303751
    $137.95
    gas strut - 1000303751×2
  • 81000082609
    $0.73
    lock washer - 1000082609×8
  • 91000015431Not stocked
    washer×14
  • 101000153159
    $24.79
    rubber buffer - 1000153159×2
  • 111000085557
    $0.78
    flat head screw - 1000085557×10
  • 121000085379
    $1.08
    hex screw - 1000085379×4
  • 131000334166Not stocked
    support gas strut×1
  • 141000085587
    $0.03
    HEXAGON NUT - 1000085587×4
  • 151000094967
    $0.65
    Washer M5,3-DIN134 - 1000094967×8
  • 161000003253Not stocked
    bonnet buckle×1
  • 171000075203
    $1.12
    DISTANCE PLATE - 1000075203×1
  • 181000015437Not stocked
    lock washer×2
  • 191000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×2
  • 201000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 211000166067
    $76.07
    HANDLE - 1000166067×1
  • 221000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×12
  • 231000085311
    $0.73
    hex screw - 1000085311×1
  • 241000288011
    $1.09
    plug M8 - 1000288011×3
  • 251000332074
    $1.80
    PLUG - 1000332074×2
  • 261000013027Not stocked
    washer×1
  • 271000333969
    $11.75
    PIN - 1000333969×2
  • 281000333968
    $30.11
    Hinge - 1000333968×2
  • 291000333967
    $40.95
    Hinge - 1000333967×2
  • 301000085613
    $0.10
    washer - 1000085613×8
  • 311000015372Not stocked
    hex screw×8
  • 321000336082
    $27.60
    plate - 1000336082×2
  • 331000222383
    $8.59
    ball and socket AS13 - 1000222383×4
  • 341000019136Not stocked
    hex screw×2
  • 351000097930
    $26.59
    RUBBER PROFILE - 1000097930×0.42
  • 361000097930
    $26.59
    RUBBER PROFILE - 1000097930×0.42
  • 371000097930
    $26.59
    RUBBER PROFILE - 1000097930×0.69
  • 381000375566
    $64.80
    BRACKET - 1000375566×1
  • 391000375567Not stocked
    displacement pump×1
  • 401000085382
    $0.70
    HEX SCREW - 1000085382×3
  • 411000015430Not stocked
    washer×6
  • 421000015405Not stocked
    hexagon nut×3
  • 431000085378
    $0.70
    hex screw - 1000085378×2
  • 441000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×4
  • 451000085587
    $0.03
    HEXAGON NUT - 1000085587×2
  • 461000413055
    $83.34
    bracket - 1000413055×1
  • 471000018400Not stocked
    hex screw×3
  • 481000015430Not stocked
    washer×6
  • 491000357533Not stocked
    hexagon nut×3
