DW50

DW50 pilot stand Diagram

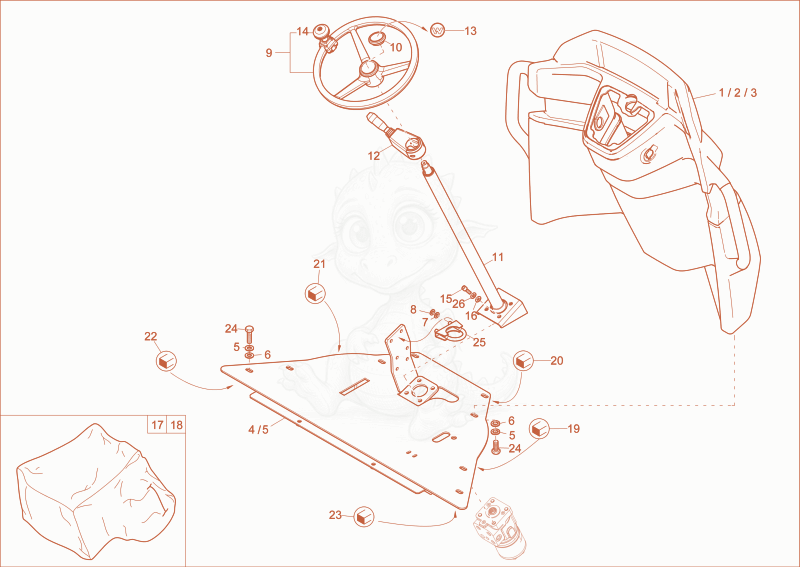

Exploded parts diagram of the pilot stand of a Wacker Neuson DW50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000284611
    $1,135.73
    Pilotstand 1000284611×1
  • 21000355320
    $636.54
    Pilotstand 1000355320×1
  • 31000397711Not stocked
    pilot stand×1
  • 41000335778Not stocked
    floor plate×1
  • 51000355368Not stocked
    floor plate×1
  • 61000094974
    $0.70
    washer M10-DIN134 - 1000094974×8
  • 71000015437Not stocked
    lock washer×2
  • 81000015431Not stocked
    washer×2
  • 91000310966Not stocked
    steering wheel×1
  • 101000198962
    $6.08
    cover cap - 1000198962×1
  • 111000266442
    $284.35
    Steeringcolumn 1000266442×1
  • 121000378383Not stocked
    steeringstick switch×1
  • 131000234336
    $39.40
    Sticker - 1000234336×1
  • 141000309229Not stocked
    rotary knob×1
  • 151000015376Not stocked
    cheese head screw×4
  • 161000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 171000075128Not stocked
    cover canvas×1
  • 181000411195
    $422.15
    cover canvas - 1000411195×1
  • 191000309165Not stocked
    seal strap foam×0.5
  • 201000309165Not stocked
    seal strap foam×27
  • 211000309165Not stocked
    seal strap foam×0.5
  • 221000309165Not stocked
    seal strap foam×0.048
  • 231000309165Not stocked
    seal strap foam×0.048
  • 241000015364Not stocked
    hex screw×8
  • 251000001721
    $8.18
    clamp - 1000001721×1
  • 261000015438Not stocked
    lock washer×12
