DW50

DW50 fuel system Diagram

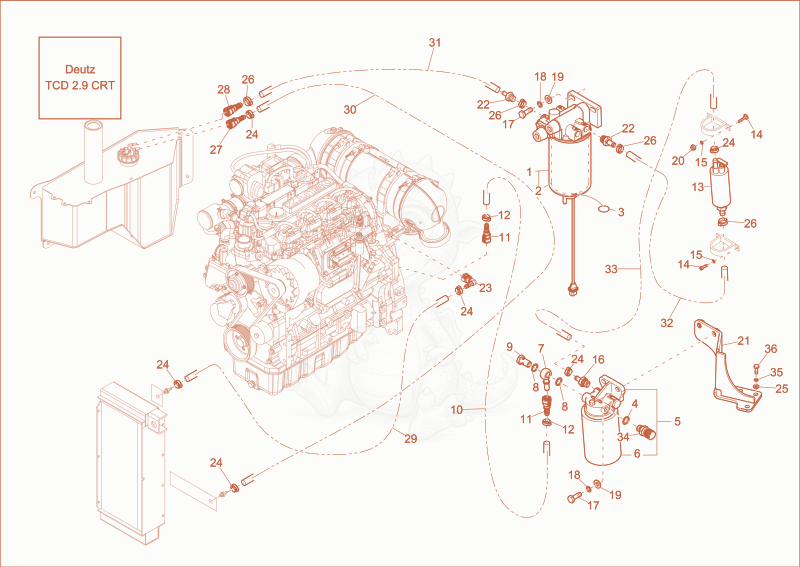

Exploded parts diagram of the fuel system of a Wacker Neuson DW50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000281592
    $590.61
    Fuelfilter 1000281592×1
  • 21000281593
    $65.22
    filter cartridge - 1000281593×1
  • 31000281595
    $3.22
    SEAL - 1000281595×1
  • 41000327516
    $6.22
    o-ring - 1000327516×1
  • 51000327515Not stocked
    fuel filter×1
  • 61000310959Not stocked
    fuel filter×1
  • 71000328605Not stocked
    quick lock coupling×1
  • 81000328584Not stocked
    seal ring×2
  • 91000328583Not stocked
    banjo bolt×1
  • 101000328582Not stocked
    flexible line×1
  • 111000328604Not stocked
    quick lock coupling×2
  • 121000328590Not stocked
    clamp×2
  • 131000373716Not stocked
    fuel pump×1
  • 141000301335
    $0.75
    door strap screw - 1000301335×4
  • 151000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×4
  • 161000333075Not stocked
    screw connection×1
  • 171000015364Not stocked
    hex screw×4
  • 181000015438Not stocked
    lock washer×4
  • 191000094974
    $0.70
    washer M10-DIN134 - 1000094974×4
  • 201000085587
    $0.03
    HEXAGON NUT - 1000085587×4
  • 211000340860
    $89.35
    bracket - 1000340860×1
  • 221000333080Not stocked
    screw connection×2
  • 231000333091Not stocked
    quick coupling×1
  • 241000324636Not stocked
    hose clamp×6
  • 251000015431Not stocked
    washer×3
  • 261000324635Not stocked
    hose clamp×4
  • 271000328893
    $12.66
    Quickconnector - 1000328893×1
  • 281000328892
    $10.68
    Quickconnector - 1000328892×1
  • 291000324638Not stocked
    fuel line×1.05
  • 301000324638Not stocked
    fuel line×2.8
  • 311000261889
    $15.60
    fuel line - 1000261889×0.27
  • 321000261889
    $15.60
    fuel line - 1000261889×0.68
  • 331000324638Not stocked
    fuel line×0.82
  • 341000328877Not stocked
    pressure switch×1
  • 351000015437Not stocked
    lock washer×3
  • 361000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×3
