DW50

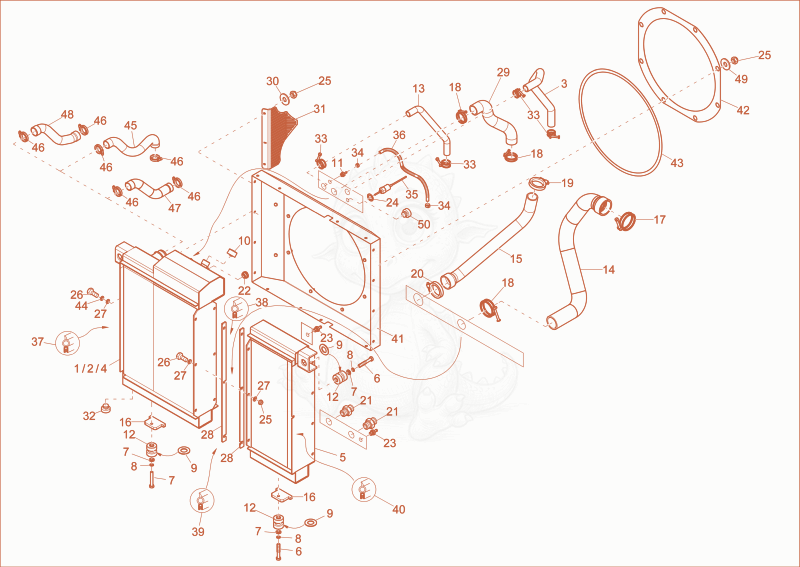

DW50 combicooler Diagram

Exploded parts diagram of the combicooler of a Wacker Neuson DW50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000345121
    $1,078.23
    cooler - 1000345121×1
  • 21000363566Not stocked
    combicooler×1
  • 31000364124Not stocked
    water hose×1
  • 41000427969Not stocked
    combicooler×1
  • 51000345100
    $1,511.70
    cooler - 1000345100×1
  • 61000085332
    $1.31
    HEX SCREW - 1000085332×4
  • 71000049219Not stocked
    washer×4
  • 81000082609
    $0.73
    lock washer - 1000082609×4
  • 91000082615
    $1.66
    WASHER - 1000082615×4
  • 101000375983Not stocked
    cooler cap×1
  • 111000403352Not stocked
    screw joint×1
  • 121000105025
    $63.79
    METAL- RUBBER BUFFER - 1000105025×4
  • 131000332129Not stocked
    water hose×1
  • 141000332130Not stocked
    water hose×1
  • 151000332137Not stocked
    air suction hose×1
  • 161000332140
    $20.96
    thread plate - 1000332140×2
  • 171000325014Not stocked
    hose clamp×1
  • 181000325015Not stocked
    hose clamp×3
  • 191000303516
    $22.99
    hose clamp - 1000303516×1
  • 201000165515
    $25.75
    hose clamp - 1000165515×1
  • 211000085096
    $9.05
    GE22LREDOMDA3C - 1000085096×2
  • 221000273882
    $20.27
    view glass G3/4" - 1000273882×1
  • 231000333075Not stocked
    screw connection×2
  • 241000019580Not stocked
    seal ring×1
  • 251000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×16
  • 261000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×22
  • 271000015431Not stocked
    washer×28
  • 281000345125
    $32.79
    joint - 1000345125×2
  • 291000345887Not stocked
    water hose×1
  • 301000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 311000355441Not stocked
    protection×1
  • 321000022438Not stocked
    screw joint×1
  • 331000348206Not stocked
    hose clamp×4
  • 341000271340
    $2.56
    hose clamp - 1000271340×2
  • 351000341369Not stocked
    level indicator×1
  • 361000424297
    $6.33
    hose - 1000424297×0.45
  • 371000017845Not stocked
    rubber profile×0.645
  • 381000017845Not stocked
    rubber profile×0.818
  • 391000017845Not stocked
    rubber profile×0.803
  • 401000017845Not stocked
    rubber profile×0.664
  • 411000331155Not stocked
    Radiator scoop×1
  • 421000332135
    $73.71
    adjustment ring - 1000332135×1
  • 431000309165Not stocked
    seal strap foam×1.82
  • 441000015437Not stocked
    lock washer×16
  • 451000332138Not stocked
    air suction hose×1
  • 461000165515
    $25.75
    hose clamp - 1000165515×2
  • 471000333077Not stocked
    air suction hose×1
  • 481000407114
    $183.36
    SUCTION HOSE - 1000407114×1
  • 491000013027Not stocked
    washer×8
  • 501000082789
    $3.42
    VSTIM14X1,5EDA3C - 1000082789×1
