ET35

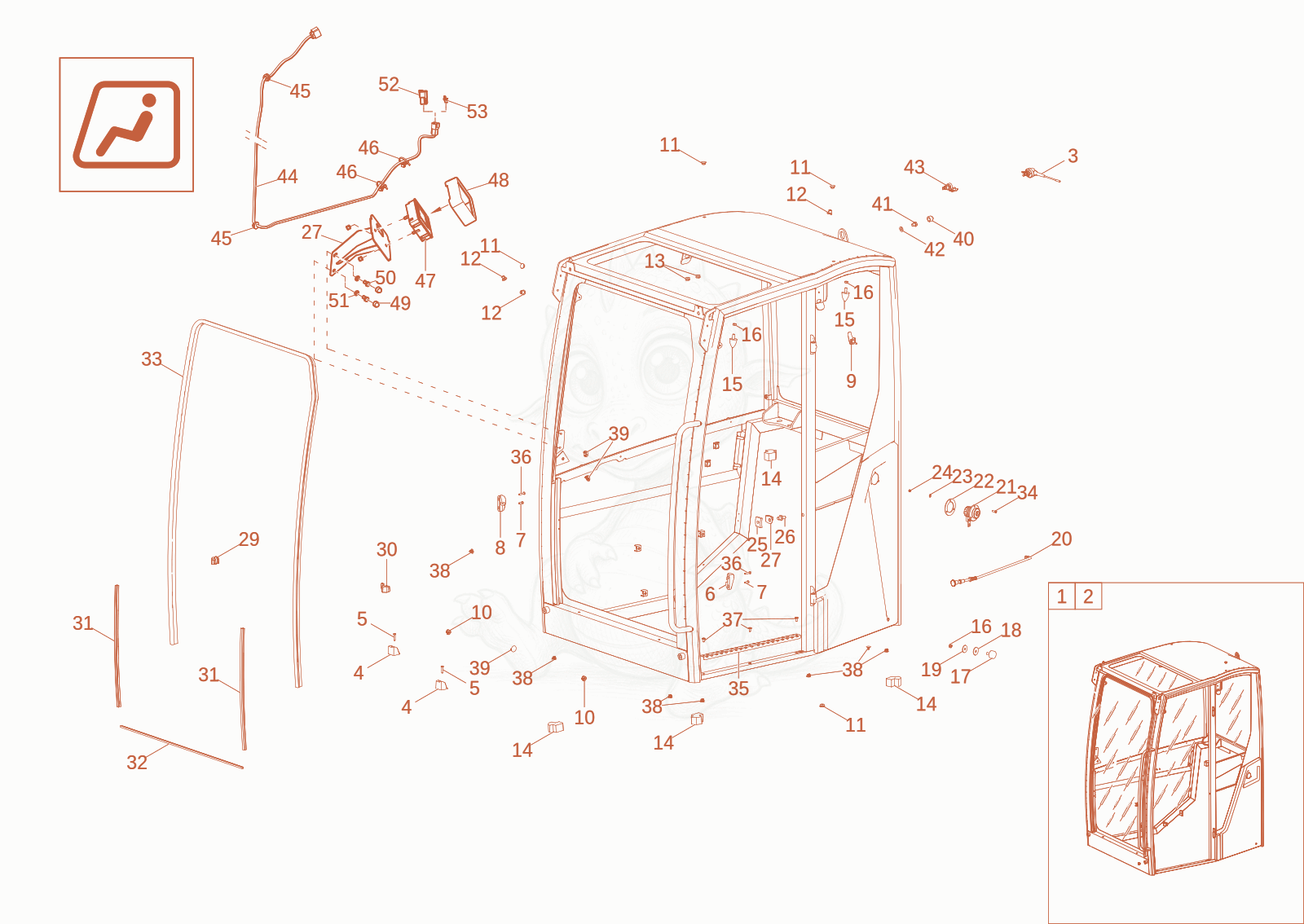

ET35 CABIN FRAME (OPTION) Diagram

Exploded parts diagram of the CABIN FRAME (OPTION) of a Wacker Neuson ET35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000549938Not stocked
    cabin×1
  • 21000549940Not stocked
    cabin×1
  • 31000364750
    $83.93
    antenna - 1000364750×1
  • 41000066203Not stocked
    clamp shoe×2
  • 51000015395Not stocked
    ovalhead screw×2
  • 61000003866Not stocked
    catch-rests×1
  • 71000124798
    $2.61
    ovalhead screw - 1000124798×2
  • 81000003867Not stocked
    catch-rests×1
  • 91000124822
    $19.56
    cloth hook - 1000124822×1
  • 101000270047
    $1.84
    screw - 1000270047×2
  • 111000075523
    $2.92
    blind plug - 1000075523×4
  • 121000124843
    $2.59
    cable sleeve - 1000124843×3
  • 131000066256Not stocked
    sleeve×2
  • 141000378355Not stocked
    lock plug×4
  • 151000241699
    $27.74
    rubber buffer - 1000241699×2
  • 161000213514
    $2.72
    Nut - 1000213514×3
  • 171000068973Not stocked
    rubber buffer×1
  • 181000004289Not stocked
    rubber disc×1
  • 191000012879Not stocked
    quad ring×1
  • 201000394146Not stocked
    antilock rod×1
  • 211000124796
    $122.14
    door fastener - 1000124796×1
  • 221000124797
    $11.44
    rubber disc - 1000124797×1
  • 231000094967
    $0.65
    Washer M5,3-DIN134 - 1000094967×3
  • 241000085587
    $0.03
    HEXAGON NUT - 1000085587×3
  • 251000068933Not stocked
    thread plate×1
  • 261000327097Not stocked
    catch bolt×1
  • 271000075584
    $3.16
    BRACKET - 1000075584×1
  • 281000407290
    $88.00
    console - 1000407290×1
  • 291000548511Not stocked
    rubber gasket×1
  • 301000548513Not stocked
    rubber gasket×1
  • 311000097235
    $42.45
    seal strap - 1000097235×1.1
  • 321000548325Not stocked
    sealing profile×1
  • 331000153158
    $48.82
    PROFILE - 1000153158×3.8
  • 341000124798
    $2.61
    ovalhead screw - 1000124798×3
  • 351000390416
    $85.55
    strap - 1000390416×1
  • 361000015395Not stocked
    ovalhead screw×2
  • 371000443600Not stocked
    flat head screw×3
  • 381000373128Not stocked
    blind plug×7
  • 391000423785Not stocked
    blind plug×3
  • 401000067799Not stocked
    cover cap×1
  • 411000047883Not stocked
    hex screw×1
  • 421000093520
    $2.25
    Washer (Polyamid) - 1000093520×1
  • 431000485001
    $8.68
    Power socket 12V Cabin - 1000485001×1
  • 441000390345Not stocked
    cable×1
  • 451000311150
    $10.37
    Plug - 1000311150×2
  • 461000399431Not stocked
    mounting×2
  • 471000309733Not stocked
    indicator instrument×1
  • 481000379028Not stocked
    trim×1
  • 491000004276Not stocked
    cover cap×2
  • 501000019136Not stocked
    hex screw×2
  • 511000015431Not stocked
    washer×2
  • 521000180582
    $42.88
    pin housing - 1000180582×1
  • 531000180578
    $3.43
    wedge - 1000180578×1
