ET35

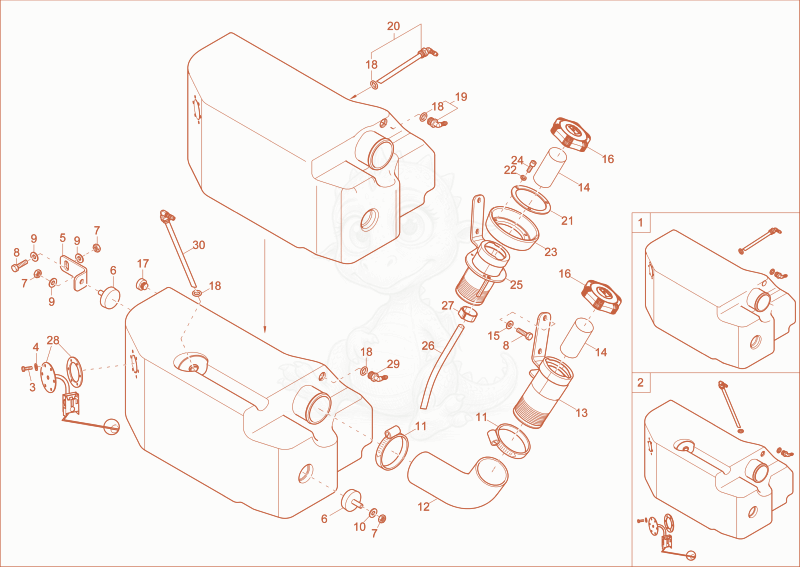

ET35 fuel tank Diagram
- fuel tank - 1000147652×1
- 21000457013Not stockedfuel tank×1
- ovalhead screw - 1000152757×6
- SEAL PLATE - 1000152756×6
- ANGLE BRACKET - 1000147654×1
- 61000052658Not stockedrubber buffer×2
- 71000015407Not stockedhexagon nut×3
- 81000015364Not stockedhex screw×3
- 91000015434Not stockedwasher×3
- Washer 10,5 St A2C - 1000092303×1
- 111000032150Not stockedclamp×2
- diesel refill hose - 1000143468×1
- tankfilling - 1000433400×1
- FILING STRAINER - 1000267866×1
- washer 10,5 A2C DIN125 - 1000015432×2
- 161000373633Not stockedfiller cap×1
- VSTI1/2EDA3C - 1000082786×1
- O-RING - 1000168416×4
- angle cut piece - 1000168397×1
- suction pipe - 1000168421×1
- 211000068722Not stockedfastenring×1
- 221000015430Not stockedu-washer×3
- 231000068721Not stockeddiesel overflow×1
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×3
- 251000423582Not stockedtankfilling×1
- 261000411932Not stockedfuel line×0.47
- clamp hose 15.3 - 1000267809×1
- fuel transmitter - 1000249304×1
- 291000457002Not stockedangle cut piece×1
- 301000475860Not stockedsuction pipe×1
