ET35

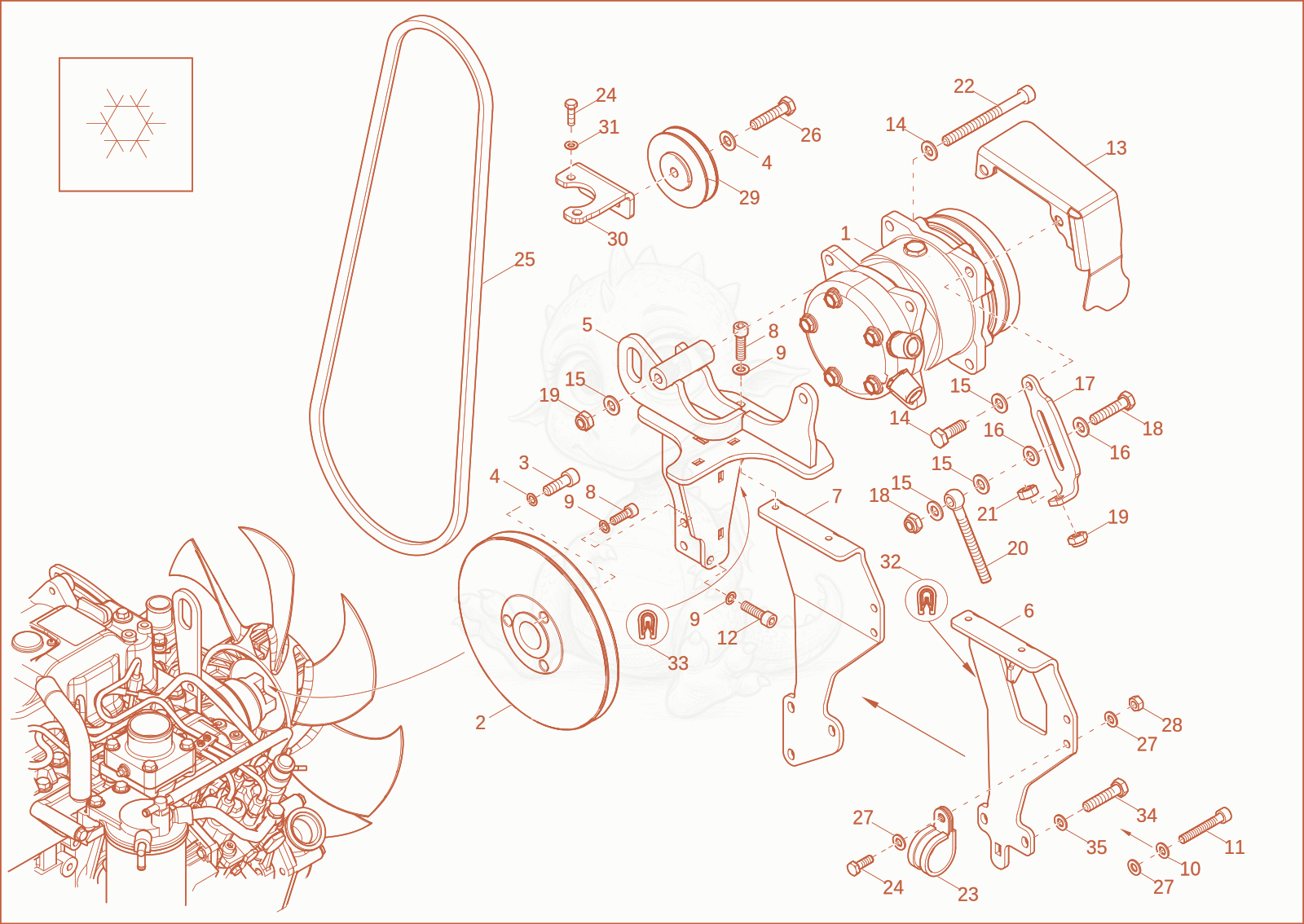

ET35 Components (Option air condition system) Diagram
- Compressoraircondition 1000177799×1
- Pulley 1000109405×1
- cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×3
- 41000015449Not stockednorthlock disc×4
- 51000388097Not stockedconsole aircond.compressor×1
- COMPRESSOR SUPP. - 1000425770×1
- 71000507741Not stockedcompressor supp.×1
- cheese head screw - 1000082295×4
- 91000357678Not stockednorthlock disc×5
- 101000015437Not stockedlock washer×3
- 6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×3
- cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×1
- 131000383445Not stockedcover×1
- allen screw M10x30 Geomet 500A DIN912 - 1000085502×2
- washer 10,5 A2C DIN125 - 1000015432×8
- 161000015442Not stockedu-washer×2
- HOLDER - 1000187250×1
- hex screw - 1000085413×1
- nut M10-8 A2C-DIN985 - 1000015408×3
- eye bolt - 1000168460×1
- 211000015407Not stockedhexagon nut×1
- 221000048187Not stockedcheese head screw×1
- clamp - 1000304270×1
- 6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×3
- BELT - 1000243212×1
- 261000015346Not stockedhex screw×1
- 271000015448Not stockedwasher×5
- DIN985-M8-8-A2C - 1000015416×1
- belt pulley - 1000166533×1
- 301000339729Not stockedbracket pulley×1
- 311000015431Not stockedwasher×2
- edge protection - 1000098163×0.045
- edge protection - 1000098163×0.13
- 341000013008Not stockedhex screw×2
- 351000426229Not stockedlock washer×2
