ET35

ET35 DIPPER ARM CYLINDER Diagram

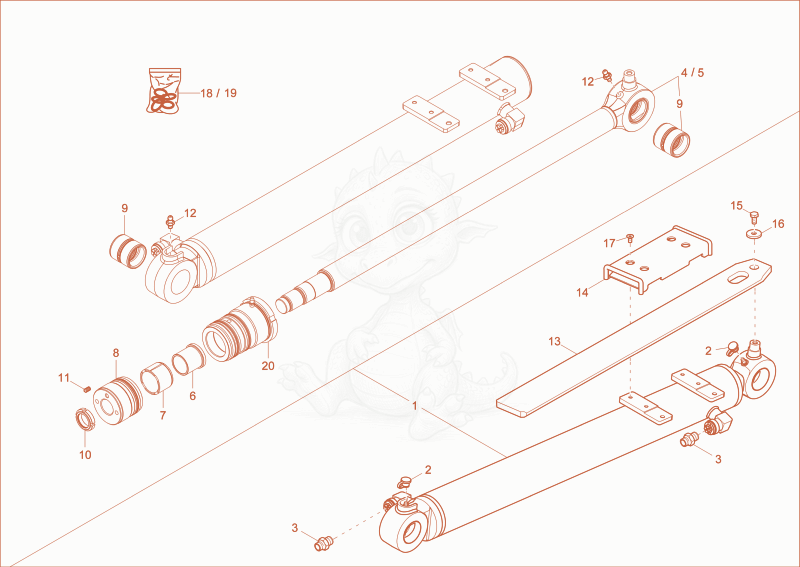

Exploded parts diagram of the DIPPER ARM CYLINDER of a Wacker Neuson ET35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000439316
    $1,479.02
    dipper arm cylinder - 1000439316×1
  • 21000015480Not stocked
    cap grease nipple×2
  • 31000015494Not stocked
    screw joint×1
  • 41000399928
    $741.38
    Pistonrod 1000399928×1
  • 51000465111Not stocked
    piston rod×1
  • 61000070839Not stocked
    fasten bushing×1
  • 71000070838Not stocked
    bushing shock absorber×1
  • 81000399481
    $70.92
    Piston - 1000399481×1
  • 91000019750Not stocked
    steel bushing×2
  • 101000399496
    $42.08
    Nut - 1000399496×1
  • 111000015384Not stocked
    thread pin×1
  • 121000015476Not stocked
    grease nipple×2
  • 131000421992
    $154.36
    protecting rail - 1000421992×1
  • 141000410703Not stocked
    guide-element×1
  • 151000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
  • 161000368878Not stocked
    lock washer×1
  • 171000085531
    $0.80
    countersunk screw - 1000085531×4
  • 181000399472Not stocked
    seal kit×1
  • 191000441614Not stocked
    seal kit×1
  • 201000399489Not stocked
    guide bushing×1
