ET35

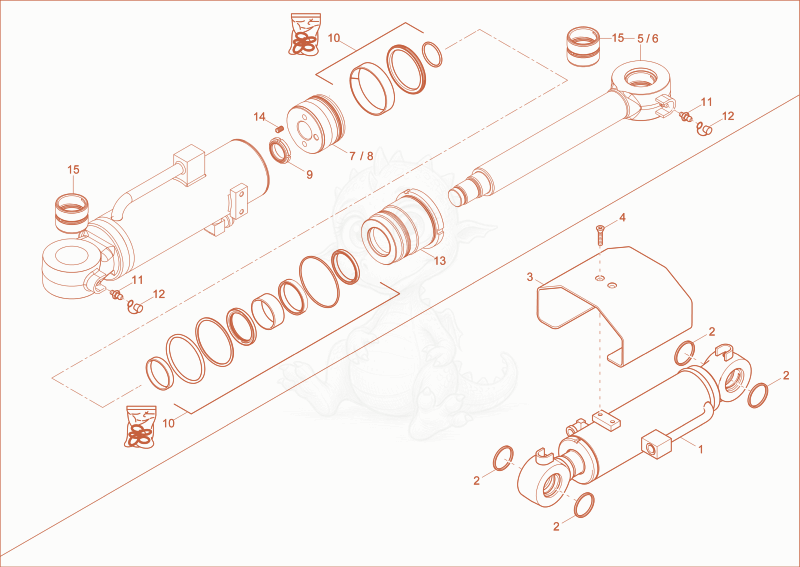

ET35 blade cylinder Diagram

Exploded parts diagram of the blade cylinder of a Wacker Neuson ET35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000458352Not stocked
    blade cylinder×1
  • 21000015707Not stocked
    pin gasket×4
  • 31000242448
    $269.15
    Protectionplate 1000242448×1
  • 41000082372
    $0.95
    countersunk screw M10x16 - 1000082372×2
  • 51000399924Not stocked
    piston rod×1
  • 61000478411Not stocked
    piston rod×1
  • 71000399477
    $103.30
    Piston - 1000399477×1
  • 81000461974
    $103.30
    piston - 1000461974×1
  • 91000399494
    $50.59
    Nut - 1000399494×1
  • 101000399468Not stocked
    seal kit×1
  • 111000015476Not stocked
    grease nipple×2
  • 121000015480Not stocked
    cap grease nipple×2
  • 131000399487Not stocked
    guide bushing×1
  • 141000015384Not stocked
    thread pin×1
  • 151000015619Not stocked
    steel bushing×2
