EZ26

EZ26 UNDERCARRIAGE Diagram

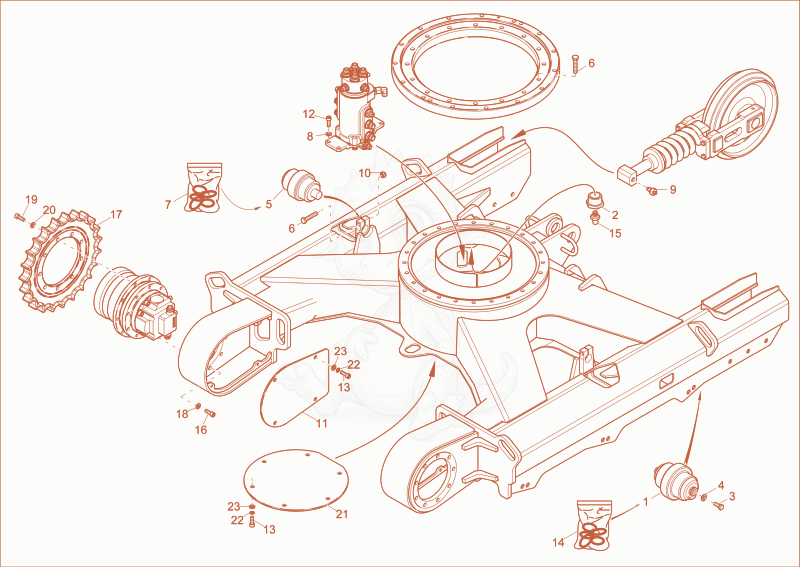

Exploded parts diagram of the UNDERCARRIAGE of a Wacker Neuson EZ26, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000171262
    $255.34
    Roller 1000171262×6
  • 21000068826Not stocked
    lock screw×1
  • 31000020983Not stocked
    hex screw×12
  • 41000095003
    $2.13
    NORTHLOCK DISC - 1000095003×12
  • 51000272941
    $198.32
    Supportroller 1000272941×2
  • 61000317381Not stocked
    hex screw×24
  • 71000185724
    $100.28
    SEAL KIT - 1000185724×2
  • 81000094995
    $0.93
    Nord-Lock disc NL8 - 1000094995×4
  • 91000232922
    $48.39
    non return valve - 1000232922×2
  • 101000020127Not stocked
    hexagon nut×2
  • 111000327289Not stocked
    drive gear box cover×2
  • 121000085497
    $0.90
    cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×4
  • 131000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×14
  • 141000171266
    $34.22
    SEAL KIT - 1000171266×6
  • 151000015476Not stocked
    grease nipple×1
  • 161000022173Not stocked
    cheese head screw×18
  • 171000068830Not stocked
    drive wheel×2
  • 181000015450Not stocked
    northlock disc×18
  • 191000015356Not stocked
    cheese head screw×18
  • 201000015450Not stocked
    northlock disc×18
  • 211000161224
    $217.82
    Coverundercarriage 1000161224×1
  • 221000015438Not stocked
    lock washer×14
  • 231000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×14
