EZ26

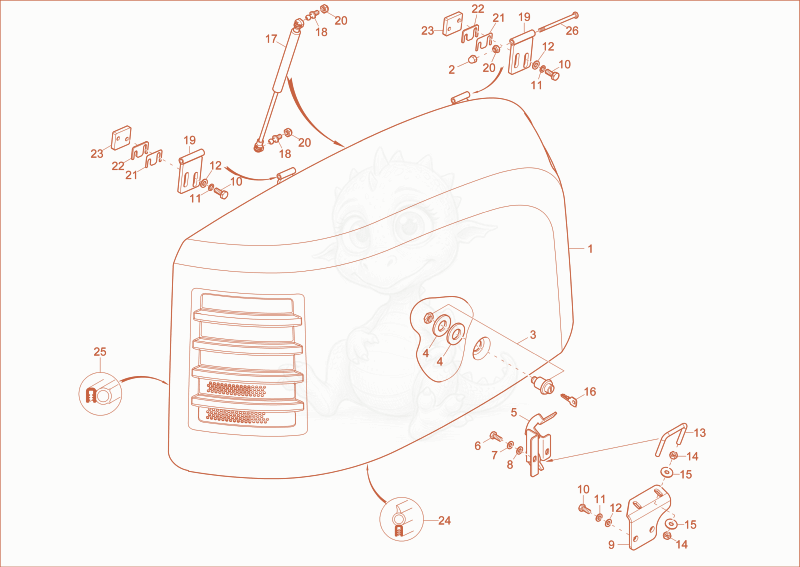

EZ26 engine hood Diagram

Exploded parts diagram of the engine hood of a Wacker Neuson EZ26, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000437862
    $7,204.75
    engine hood - 1000437862×1
  • 21000004276Not stocked
    cover cap×4
  • 31000078889
    $62.87
    push button - 1000078889×1
  • 41000082615
    $1.66
    WASHER - 1000082615×2
  • 51000163101
    $112.13
    LOCK - 1000163101×1
  • 61000013008Not stocked
    hex screw×2
  • 71000015437Not stocked
    lock washer×2
  • 81000015431Not stocked
    washer×6
  • 91000361582Not stocked
    catch angle×1
  • 101000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×6
  • 111000015438Not stocked
    lock washer×6
  • 121000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×6
  • 131000143710
    $26.29
    closing handle - 1000143710×1
  • 141000013021Not stocked
    hexagon nut×4
  • 151000013027Not stocked
    washer×4
  • 161000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 171000290515
    $60.51
    gas strut - 1000290515×1
  • 181000238291
    $6.26
    ball plug - 1000238291×2
  • 191000267452
    $19.91
    Hinge - 1000267452×2
  • 201000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×4
  • 211000071501Not stocked
    plate×1
  • 221000093886
    $6.41
    adjusting plate - 1000093886×1
  • 231000165223
    $44.06
    plate - 1000165223×2
  • 241000017845Not stocked
    rubber profile×1.2
  • 251000098198
    $19.56
    RUBBER PROFILE - 1000098198×1
  • 261000047337Not stocked
    hex screw×2
