EZ26

EZ26 HYDRAULIC PUMP INSTALLATION Diagram

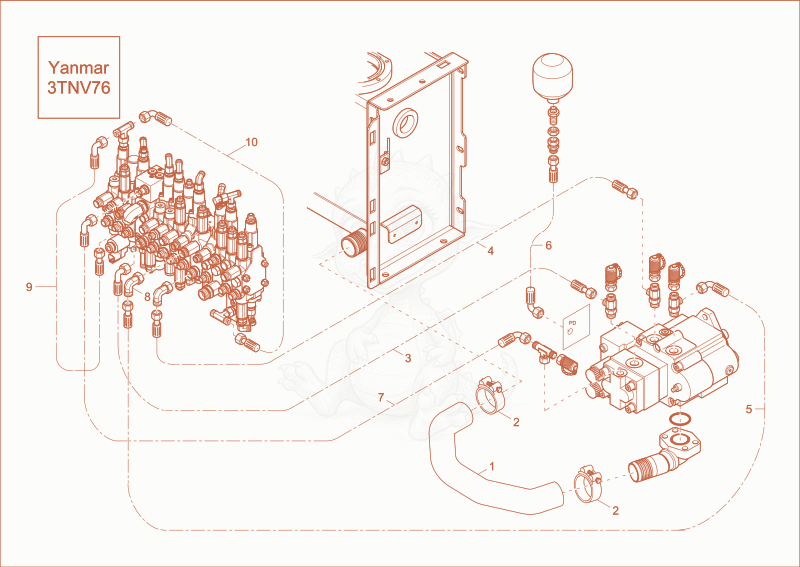

Exploded parts diagram of the HYDRAULIC PUMP INSTALLATION of a Wacker Neuson EZ26, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000282955
    $98.26
    SUCTION HOSE - 1000282955×1
  • 21000178372
    $4.86
    HOSE CLAMP - 1000178372×2
  • 31000013155
    $58.11
    SLHYDR 2SC 10 PN12 90 PN12 0 L900,0 0 - 1000013155×1
  • 41000278305
    $48.09
    SLHYDR 2SC 12 PN12 0 PN12 0 L600,0 0 - 1000278305×1
  • 51000278306
    $65.23
    SLHYDR 2SC 12 PN12 90 PN12 0 L750,0 0 - 1000278306×1
  • 61000021508Not stocked
    Hose×1
  • 71000076538
    $13.51
    SLHYDR 1SCP6,0PN8 0 PN8 90 L800,0 0 - 1000076538×1
  • 81000000573Not stocked
    screw joint×1
  • 91000021506
    $32.53
    SLHYDR 1SCP6,0PN8 0 PN8 90 L600,0 - 1000021506×1
  • 101000112780
    $59.91
    SLHYDR 1SCP6,0PN8 0 PN8 90 L700,0 0 - 1000112780×1
