EZ26

EZ26 SPEED CONTROL (OPTION) Diagram

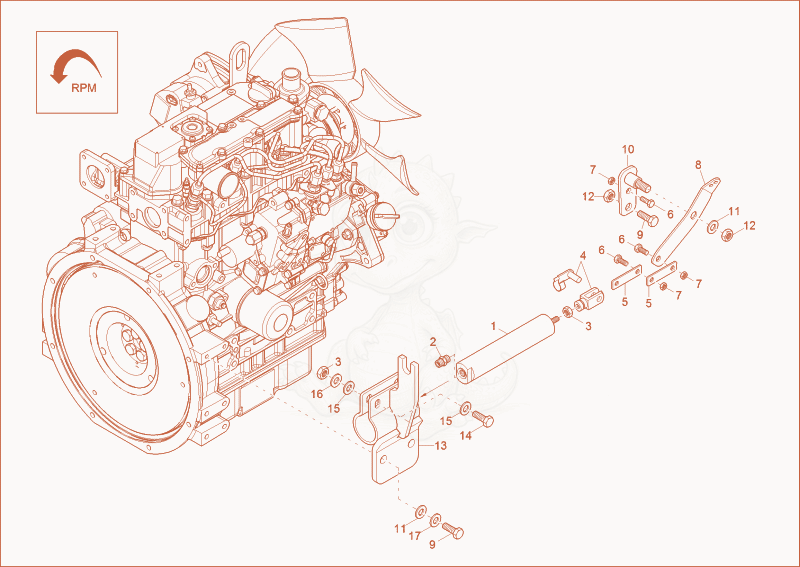

Exploded parts diagram of the SPEED CONTROL (OPTION) of a Wacker Neuson EZ26, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000405956
    $290.90
    cylinder speed control - 1000405956×1
  • 21000083027
    $6.19
    GE08LM10X1EDOMDA3C - 1000083027×1
  • 31000015405Not stocked
    hexagon nut×3
  • 41000123993
    $5.83
    fork head - 1000123993×1
  • 51000153422
    $0.99
    plate - 1000153422×2
  • 61000085382
    $0.70
    HEX SCREW - 1000085382×3
  • 71000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×3
  • 81000177774
    $10.48
    accelerator lever - 1000177774×1
  • 91000019136Not stocked
    hex screw×3
  • 101000179825
    $8.68
    joint - 1000179825×1
  • 111000015431Not stocked
    washer×3
  • 121000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 131000171309
    $100.39
    BRACKET - 1000171309×1
  • 141000018400Not stocked
    hex screw×2
  • 151000015430Not stocked
    u-washer×4
  • 161000015436Not stocked
    lock washer×2
  • 171000015437Not stocked
    lock washer×2
