EZ26

EZ26 air cleaner Diagram

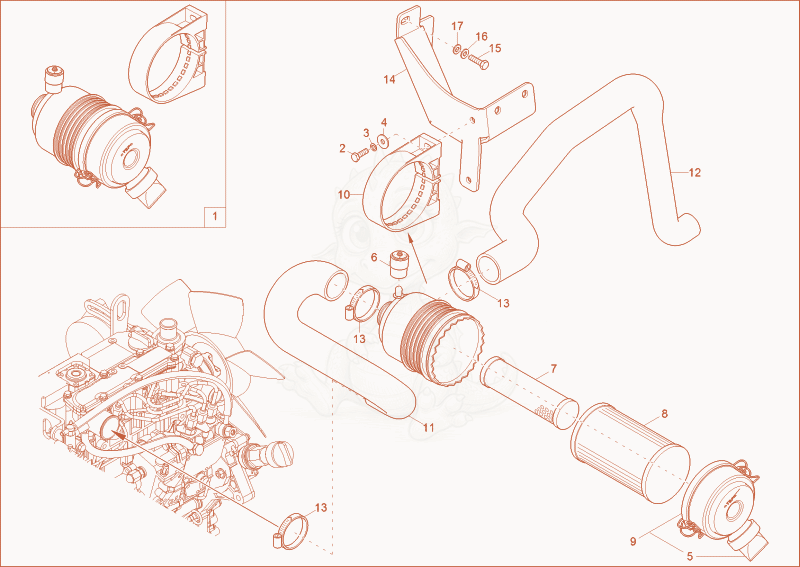

Exploded parts diagram of the air cleaner of a Wacker Neuson EZ26, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000261459
    $74.61
    air cleaner - 1000261459×1
  • 21000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
  • 31000013027Not stocked
    washer×2
  • 41000015437Not stocked
    lock washer×2
  • 51000084971
    $6.25
    dustexhaust valve - 1000084971×1
  • 61000020793Not stocked
    dirt indicator×1
  • 71000263252
    $27.25
    airfilter element - 1000263252×1
  • 81000263251
    $24.00
    airfilter element - 1000263251×1
  • 91000262652
    $29.77
    filter cover - 1000262652×1
  • 101000231539
    $13.02
    bracket airfilter - 1000231539×1
  • 111000262624
    $323.70
    air suction hose - 1000262624×1
  • 121000262289
    $146.71
    air suction hose - 1000262289×1
  • 131000096844
    $3.64
    hose clamp W1 44-60/12 - 1000096844×3
  • 141000263302
    $44.87
    Bracketairfilter 1000263302×1
  • 151000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 161000015438Not stocked
    lock washer×2
  • 171000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
