G50 Generator, Brazil, Premium

G50 Generator/Engine Diagram

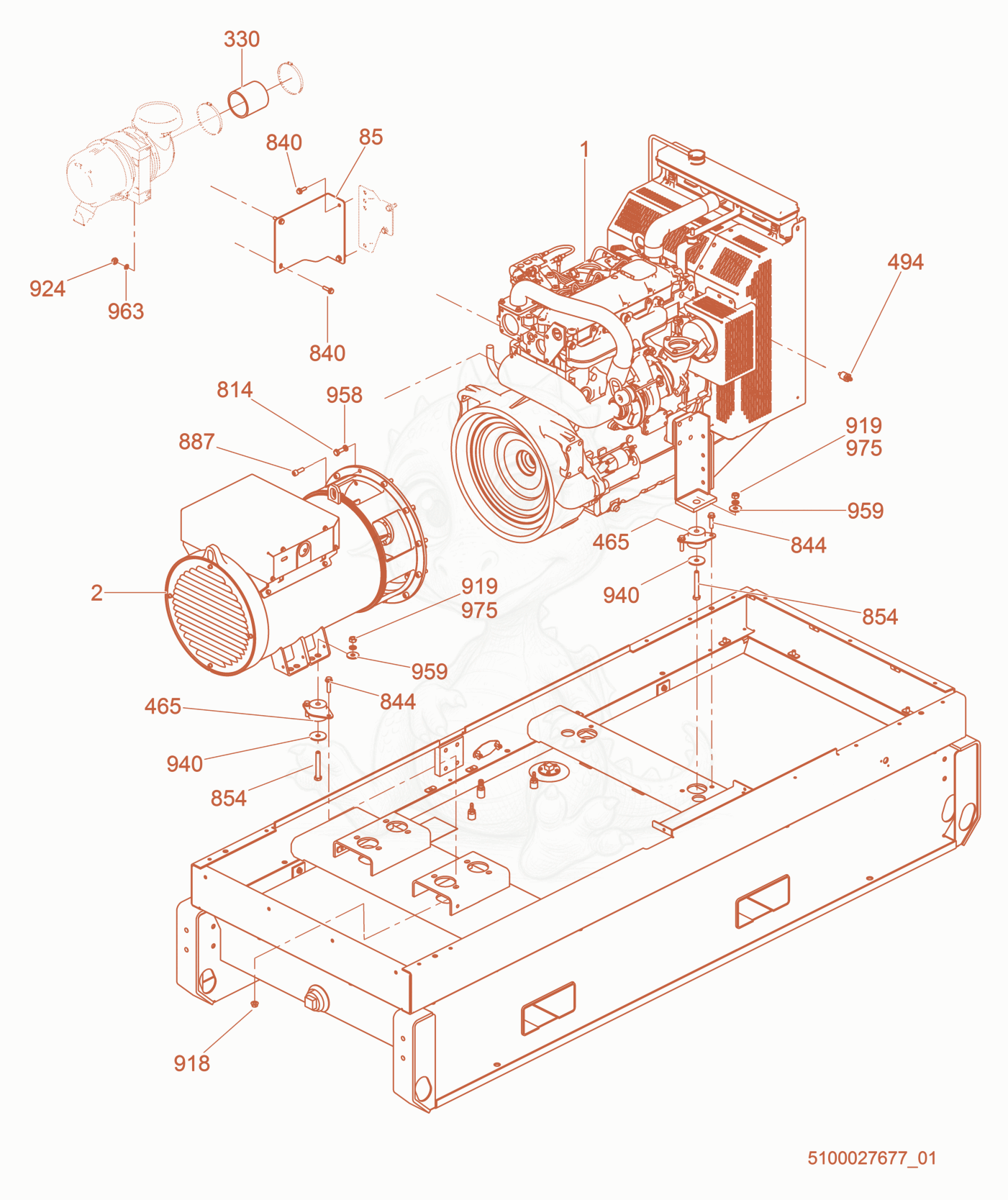

Exploded parts diagram of the Generator/Engine of a Wacker Neuson G50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200014000Not stocked
    Engine-Perkins×1
  • 25100026194Not stocked
    General cpl.×1
  • 855100018022Not stocked
    Bracket×1
  • 3305200008323
    $14.58
    HOSE-INTAKE,3 IN. ID X 3.5 IN. SILICONE - 5200008323×1
  • 4655000153064
    $61.48
    SHOCKMOUNT-RUBBER,570LBS - 5000153064×4
  • 4945000153219
    $27.38
    SENSOR-TEMPERATURE,LRG SP=5200001043 - 5000153219×1
  • 8145200021928Not stocked
    Screw×8
  • 8405000085957
    $1.51
    SCREW M8 X 30,HX.HD,SER.FLG - 5000085957×4
  • 8445000154521
    $1.22
    SCREW M10X20-10.9 HX SFLG MZP - 5000154521×10
  • 8545000011309
    $1.16
    SCREW M12 X 90 HX.HD. - 5000011309×4
  • 8875000164524
    $0.67
    SCREW M10X40-10.9,SOC HD,PLAIN - 5000164524×12
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×4
  • 9245000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×8
  • 9405000153066
    $5.36
    WASHER-SNUBBER - 5000153066×4
  • 9585000154530
    $0.29
    WASHER M10 HARDENED BLK TP 200 - 5000154530×8
  • 9595000010376
    $0.29
    WASHER A13 FLAT - 5000010376×4
  • 9755000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×4
