G50 Generator, Brazil, Premium

G50 Cylinder Block Diagram

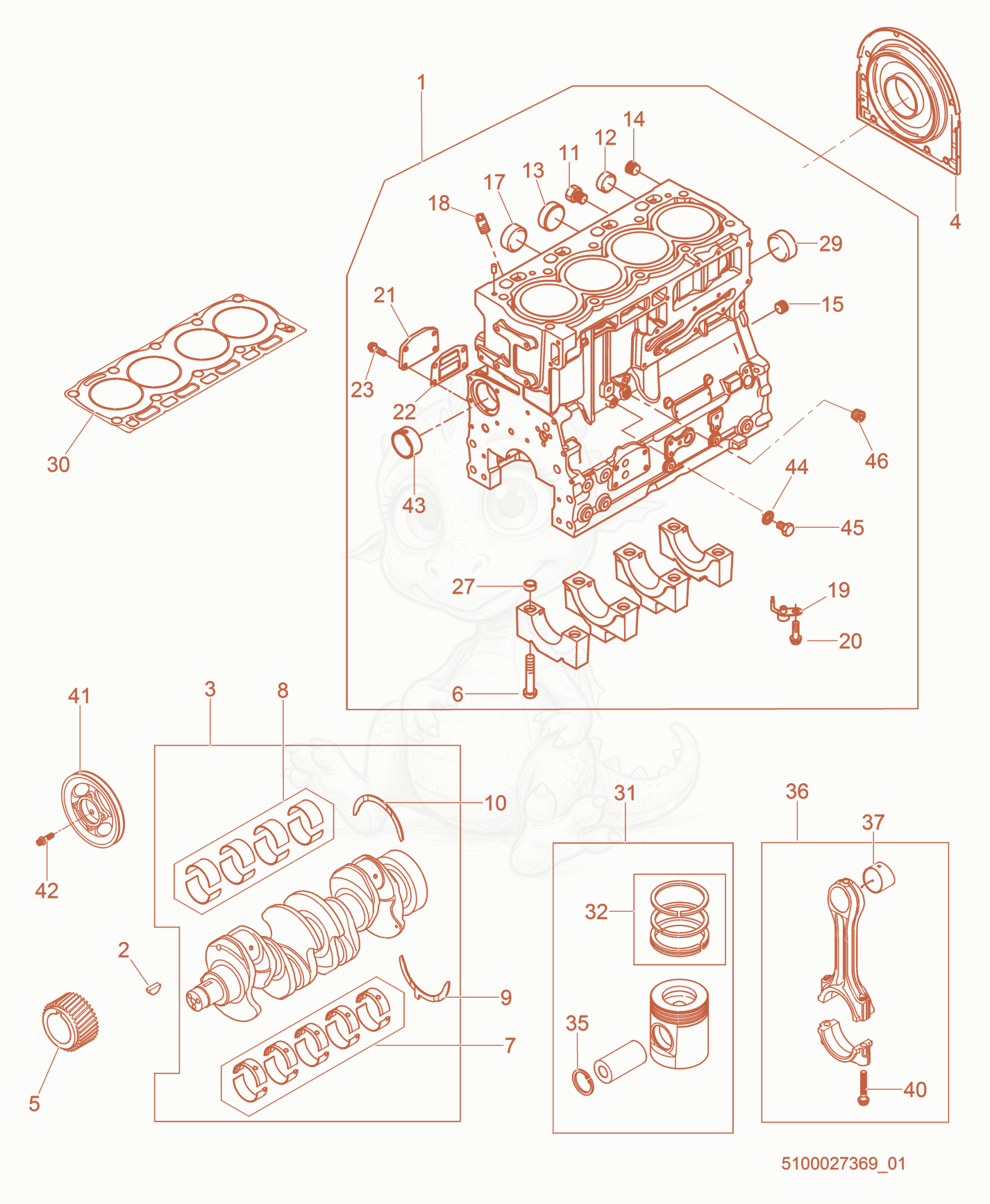

Exploded parts diagram of the Cylinder Block of a Wacker Neuson G50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000313214Not stocked
    Cylinder block×1
  • 21000115120Not stocked
    Key×1
  • 35200024064Not stocked
    Crankshaft×1
  • 45200021351Not stocked
    Seal×1
  • 55200021078Not stocked
    Crankshaft gear×1
  • 65200021333Not stocked
    Screw×8
  • 75200024065Not stocked
    Bearing×1
  • 81000315403Not stocked
    MAIN BEARING SET×1
  • 95200021394Not stocked
    Thrust washer×1
  • 105200021393Not stocked
    Thrust washer×1
  • 115200021242Not stocked
    Plug×1
  • 121000115050
    $7.63
    PLUG - 1000115050×1
  • 135200021244Not stocked
    Plug×1
  • 141000199889
    $13.98
    LOCK PLUG - 1000199889×1
  • 155200021240Not stocked
    Plug×1
  • 175200021243Not stocked
    Plug×1
  • 185200021241Not stocked
    Plug×1
  • 195200021213Not stocked
    Jet×1
  • 205200021295Not stocked
    Screw×1
  • 215200021031Not stocked
    Plate×1
  • 225200021436Not stocked
    Gasket×1
  • 235200021307Not stocked
    Screw×4
  • 275200021388Not stocked
    Collar×8
  • 295200021246Not stocked
    Plug×1
  • 305200024069Not stocked
    Cylinder head gasket×1
  • 315100027065Not stocked
    Piston w/Ring Set×1
  • 321000130657Not stocked
    Piston Ring Set×1
  • 355200021056Not stocked
    Clip×1
  • 365200024772Not stocked
    Connecting rod×1
  • 375200021358Not stocked
    Bushing×1
  • 405200024150Not stocked
    Bolt×1
  • 415200024107Not stocked
    Crankshaft pulley×1
  • 425200021036Not stocked
    Bolt×3
  • 435200021050Not stocked
    Bushing×1
  • 445200021421Not stocked
    Washer×1
  • 455200021294Not stocked
    Screw×1
  • 461000199890
    $16.95
    LOCK SCREW - 1000199890×1
