G50 Generator, Brazil, Premium

G50 Dipstick/Oil Pump Diagram

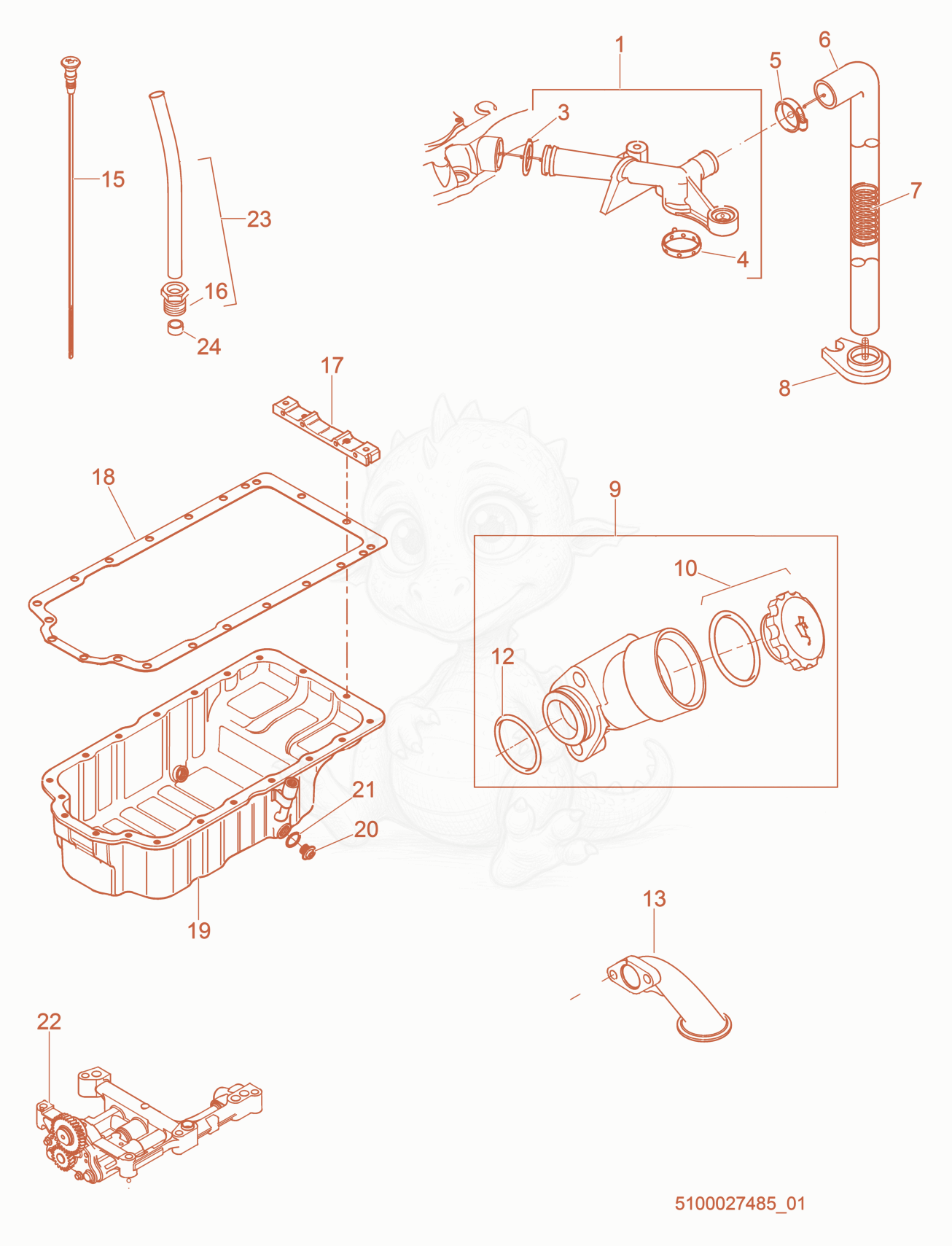

Exploded parts diagram of the Dipstick/Oil Pump of a Wacker Neuson G50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200021197Not stocked
    Breather tube×1
  • 35200021341Not stocked
    O-Ring×1
  • 45200021340Not stocked
    O-Ring×1
  • 55200021154Not stocked
    Hose clamp×1
  • 65200021148Not stocked
    Hose×1
  • 75200021362Not stocked
    Spring×1
  • 85200021371Not stocked
    Support bracket×1
  • 95200021187Not stocked
    Oil fill tube×1
  • 105200021188Not stocked
    Oil filler cap×1
  • 125200021342Not stocked
    O-Ring×1
  • 135100027092Not stocked
    Pipe×1
  • 155200024094Not stocked
    Dipstick×1
  • 165200024097Not stocked
    Nut×1
  • 175200021044Not stocked
    Connector-Bridge×1
  • 185200024093Not stocked
    Oil pan gasket×1
  • 195200024092Not stocked
    Oil pan×1
  • 205200021253Not stocked
    Plug×1
  • 215200021338Not stocked
    O-Ring×1
  • 225100027097Not stocked
    Oil pump×1
  • 235200024095Not stocked
    Tube×1
  • 245200024096Not stocked
    Collar×1
