G50 Generator, Brazil, Premium

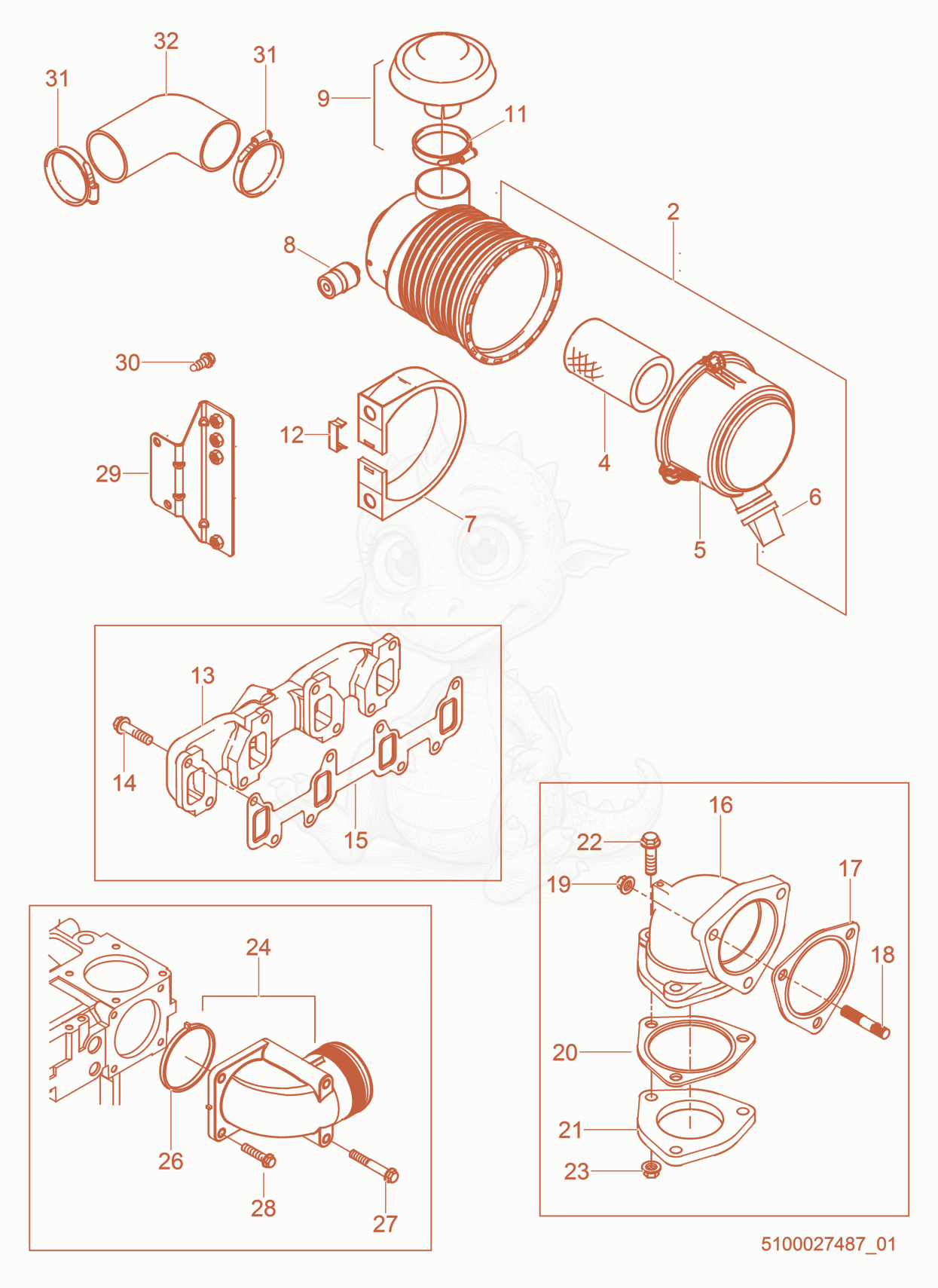

G50 Intake/Exhaust Diagram
- 25200021015Not stockedAir filter×1
- 45200021170Not stockedFilter element, main×1
- 55200021074Not stockedCover×1
- 65200021097Not stockedValve×1
- 75200021039Not stockedBracket×1
- 85200021159Not stockedIndicator×1
- 95200021053Not stockedCap×1
- 115200024081Not stockedClip×1
- 125200021067Not stockedClip×1
- 131000130757Not stockedExhaust manifold×1
- 145200021328Not stockedScrew×8
- 155200024126Not stockedExhaust gasket×1
- 161000087392Not stockedAngle piece×1
- 175200024124Not stockedExhaust gasket×2
- 185200024087Not stockedStud×3
- 195200021182Not stockedNut×3
- 205200024124Not stockedExhaust gasket×2
- 215200024123Not stockedFlange-exhaust×1
- 225200021316Not stockedScrew×3
- 235200021182Not stockedNut×3
- 245100027098Not stockedElbow×1
- 265200024786Not stockedGasket×1
- 271000130747Not stockedScrew×2
- 285200021307Not stockedScrew×2
- 295200024132Not stockedBracket×1
- 305200021313Not stockedScrew×2
- 315100027099Not stockedClip×2
- 325100027100Not stockedHose×1
