G50 Generator, Brazil, Premium

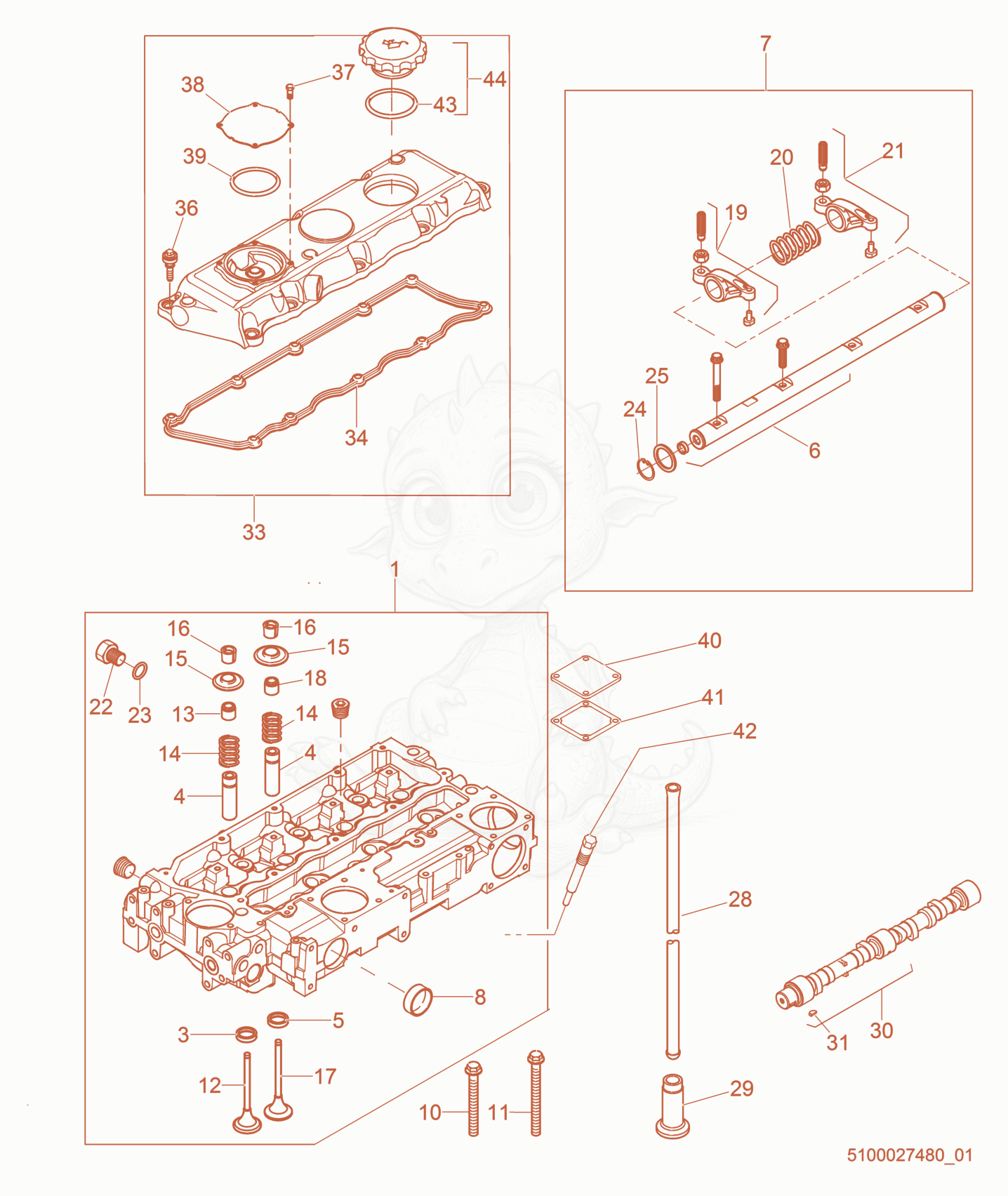

G50 Cylinder Cpl. Diagram
- 15100027066Not stockedCylinder head cpl.×1
- 35200021410Not stockedSeat-valve, intake×4
- 45200021099Not stockedValve guide×8
- 55200021411Not stockedSeat-valve, exhaust×4
- 65200024071Not stockedRocker arm×1
- 75200024070Not stockedRocker arm×1
- 85200021248Not stockedPlug×2
- 105200021083Not stockedBolt×7
- 115200021084Not stockedBolt×3
- 125200021164Not stockedIntake valve×4
- 135200021354Not stockedSeal×4
- 141000130584Not stockedSpring×8
- 155200021054Not stockedCap×8
- 165200021098Not stockedValve×8
- 175200021108Not stockedExhaust valve×4
- 185200021353Not stockedSeal×4
- 195200021267Not stockedRocker arm×4
- 205200021276Not stockedSpring×3
- 215200021268Not stockedRocker arm×4
- 225200021249Not stockedPlug×1
- 235200021348Not stockedO-Ring×1
- 245200021059Not stockedClip×2
- 255200021418Not stockedWasher×2
- 285200021263Not stockedPush rod×8
- 291000115299Not stockedPush rod×8
- 301000130642Not stockedCamshaft×1
- 311000115120Not stockedKey×1
- 335100027093Not stockedCylinder head cover cpl.×1
- 345200024099Not stockedCylinder head gasket×1
- 365200021288Not stockedScrew×10
- 375200024100Not stockedScrew×4
- 385200021233Not stockedPlate×1
- 395200024075Not stockedO-Ring×1
- 405200021232Not stockedPlate×1
- 415200021130Not stockedGasket×1
- 425200021260Not stockedPlug×4
- 435200024837Not stockedO-Ring×1
- 445200024804Not stockedOil filler cap×1
