GP6600A

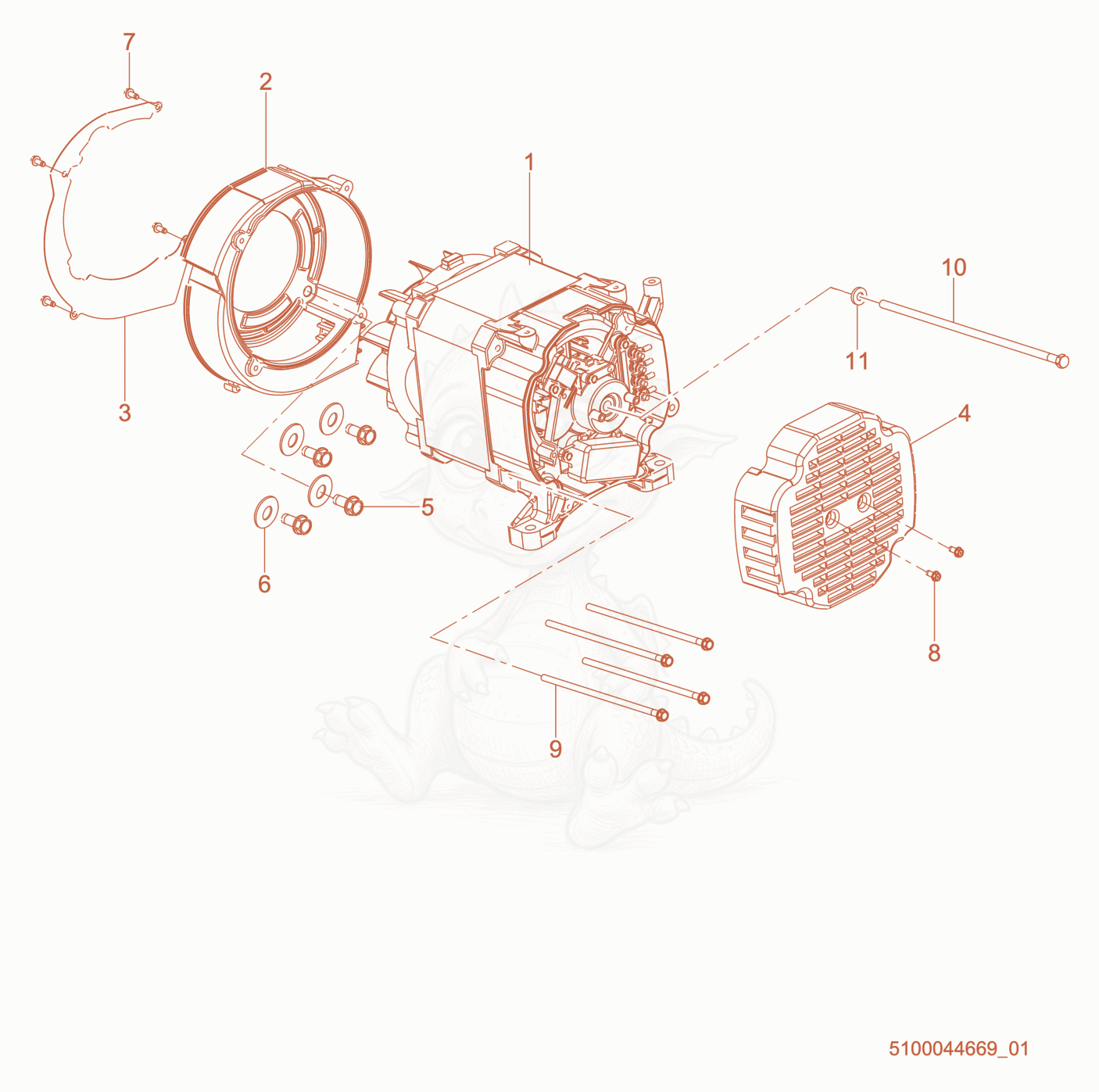

GP6600A Generator cpl. Diagram
- GENERATOR ASSEMBLY - 5200003529×1
- BRACKET-FRONT - 5000171749×1
- PLATE-BF - 5000171750×1
- Cover - 5000171751×1
- BOLT,3/8-16UNC - 5100043842×4
- WASHER - 5100043843×4
- SCREW-TAPPING M5 X 10 - 5000162473×4
- SCREW-TAPPING M5 X 12 - 5000162474×2
- BOLT M6 X 165 - 5000171793×4
- BOLT 5/16 X 210 - 5000171773×1
- WASHER M8 - 5000171760×1
