GP6600A

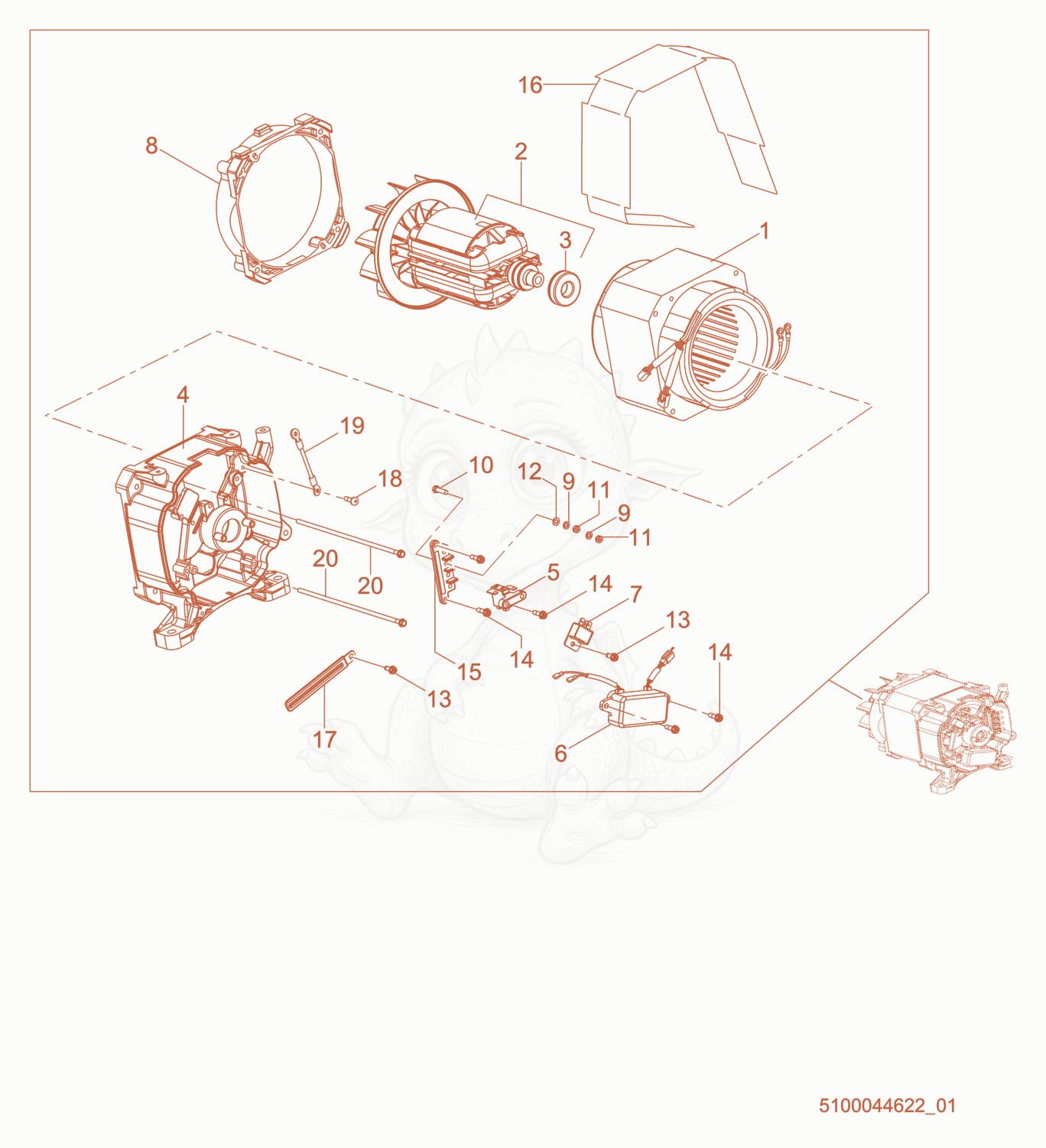

GP6600A Rotor & Stator Diagram
- STATOR ASSEMBLY - 5000171766×1
- ROTOR ASSEMBLY - 5000171763×1
- BEARING-BALL - 5000162517×1
- BRACKET-REAR - 5200003530×1
- BRUSH ASSEMBLY - 5000162490×1
- MODULE-VOLTAGE REGULATOR - 5100043838×1
- DIODE ASSEMBLY - 5000171784×1
- RING-SPACER - 5000171767×1
- Washer-spring - 5000162483×8
- BOLT M5 X 20 - 5000162477×4
- Nut - 5000162481×8
- Washer - 5000162482×4
- SCREW-TAPPING M5 X 12 - 5000162474×2
- SCREW M5 X 16 - 5000171787×5
- Terminal board - 5000162509×1
- Cover - 5000171770×1
- Plate - 5000171777×1
- SCREW M5 X 12 - 5000162472×1
- WIRE HARNESS - 5000162496×1
- BOLT M5 X 175 - 5000171790×2
