GP6600A

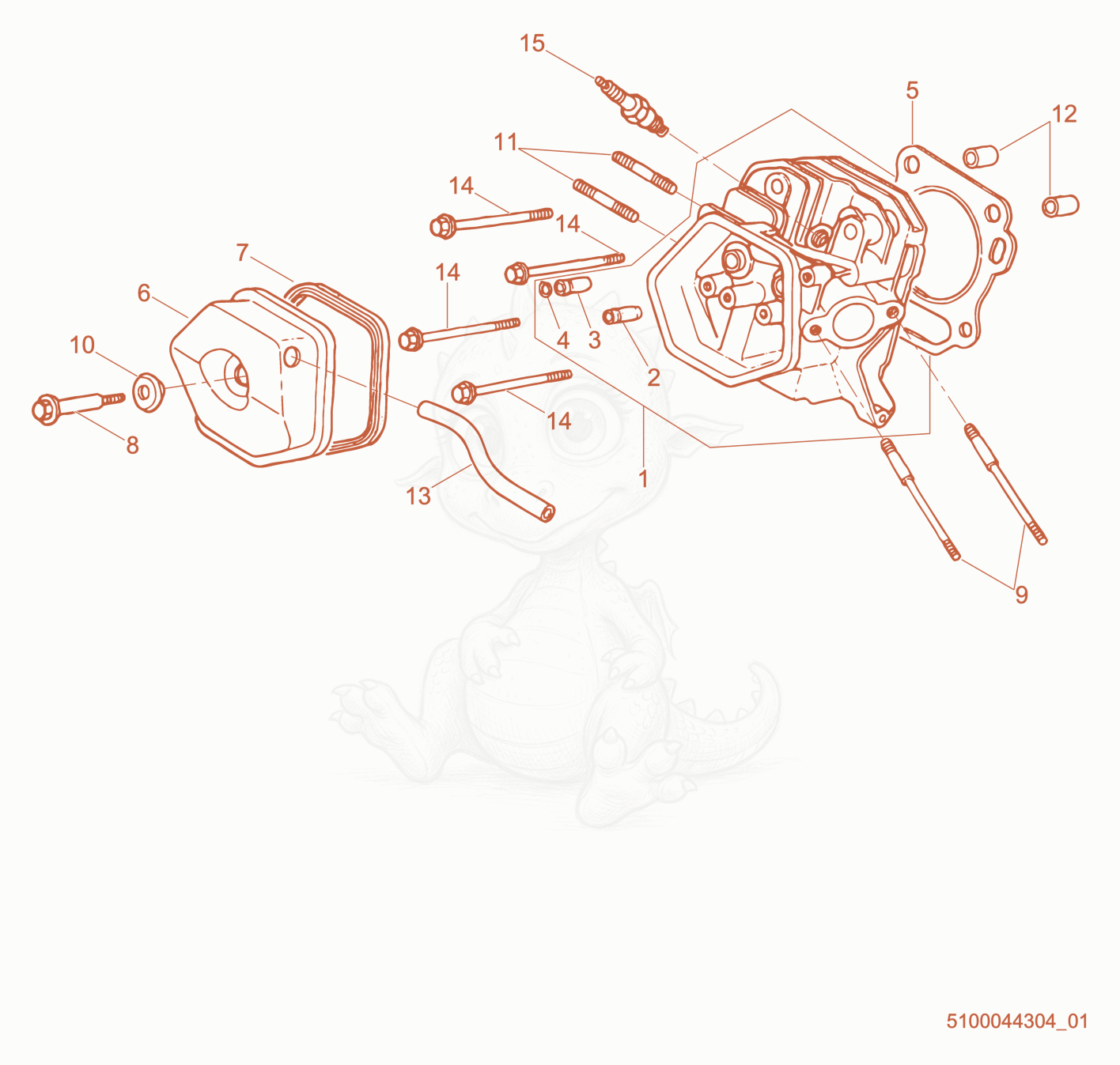

GP6600A Cylinder Head cpl. Diagram

Exploded parts diagram of the Cylinder Head cpl. of a Wacker Neuson GP6600A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100038229
    $955.90
    Cylinder Head cpl. - 5100038229×1
  • 25000110602
    $28.47
    GUIDE-VALVE,INTAKE - 5000110602×1
  • 35000074648
    $26.35
    GUIDE-EXHAUST VALVE - 5000074648×1
  • 45000074660
    $2.85
    RET.RING 11.9MM,FORM C - 5000074660×1
  • 55200000465
    $4.55
    Gasket-cylinder head - 5200000465×1
  • 65000089273
    $77.37
    COVER-CYLINDER HEAD - 5000089273×1
  • 75000074645
    $15.43
    GASKET-CYLINDER HEAD COVER - 5000074645×1
  • 85200000468
    $1.63
    screw - 5200000468×1
  • 95200000530
    $7.10
    Stud bolt - 5200000530×2
  • 105000074657
    $7.71
    WASHER - 5000074657×1
  • 115000125833
    $3.41
    BOLT-THREADED,STUD - 5000125833×2
  • 125000074652
    $3.70
    PIN 12 X 20,DOWEL - 5000074652×2
  • 135200000531
    $8.25
    Tube-Breather - 5200000531×1
  • 145000074647
    $4.94
    SCREW M10 X 80,HEX.FLANGED - 5000074647×4
  • 155000150914
    $3.67
    SPARK PLUG-(BPR6ES)NKS X-5000203788 - 5000150914×1
