GP6600A

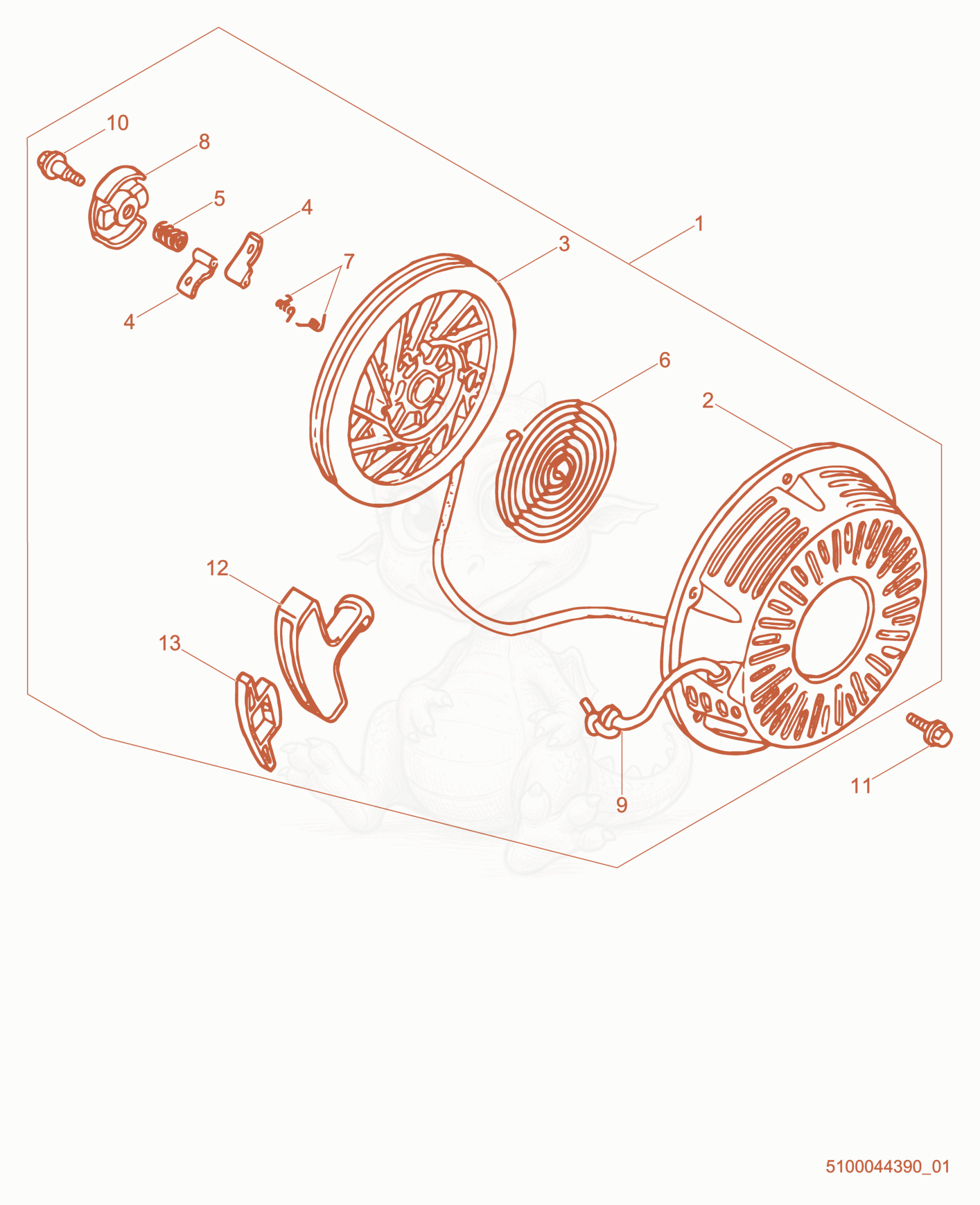

GP6600A Starter cpl. Diagram

Exploded parts diagram of the Starter cpl. of a Wacker Neuson GP6600A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200000497
    $64.92
    Starter-recoil, cpl. (black) - 5200000497×1
  • 25000116300
    $135.94
    HOUSING-STARTER,BLACK - 5000116300×1
  • 35000082840
    $54.24
    PULLEY-REWIND STARTER - 5000082840×1
  • 45000081645
    $9.03
    RATCHET-PAWL,REWIND STARTER - 5000081645×2
  • 55000081646
    $7.24
    SPRING-STARTER FRICTION - 5000081646×1
  • 65000081647
    $22.20
    SPRING-STARTER RETURN - 5000081647×1
  • 75000081648
    $6.31
    SPRING-STARTER RATCHET - 5000081648×2
  • 85000081649
    $17.44
    HOLDER-STARTER SPRING - 5000081649×1
  • 105000160151
    $63.87
    Rope - 5000160151×1
  • 115000081658
    $4.88
    Screw - 5000081658×1
  • 125000071053
    $1.89
    SCREW M6 X 10,HX.FLANGED - 5000071053×3
  • 135200000499
    $11.33
    Handle-starter - 5200000499×1
  • 145200000500
    $3.78
    Insert-starter handle - 5200000500×1
