GP6600A

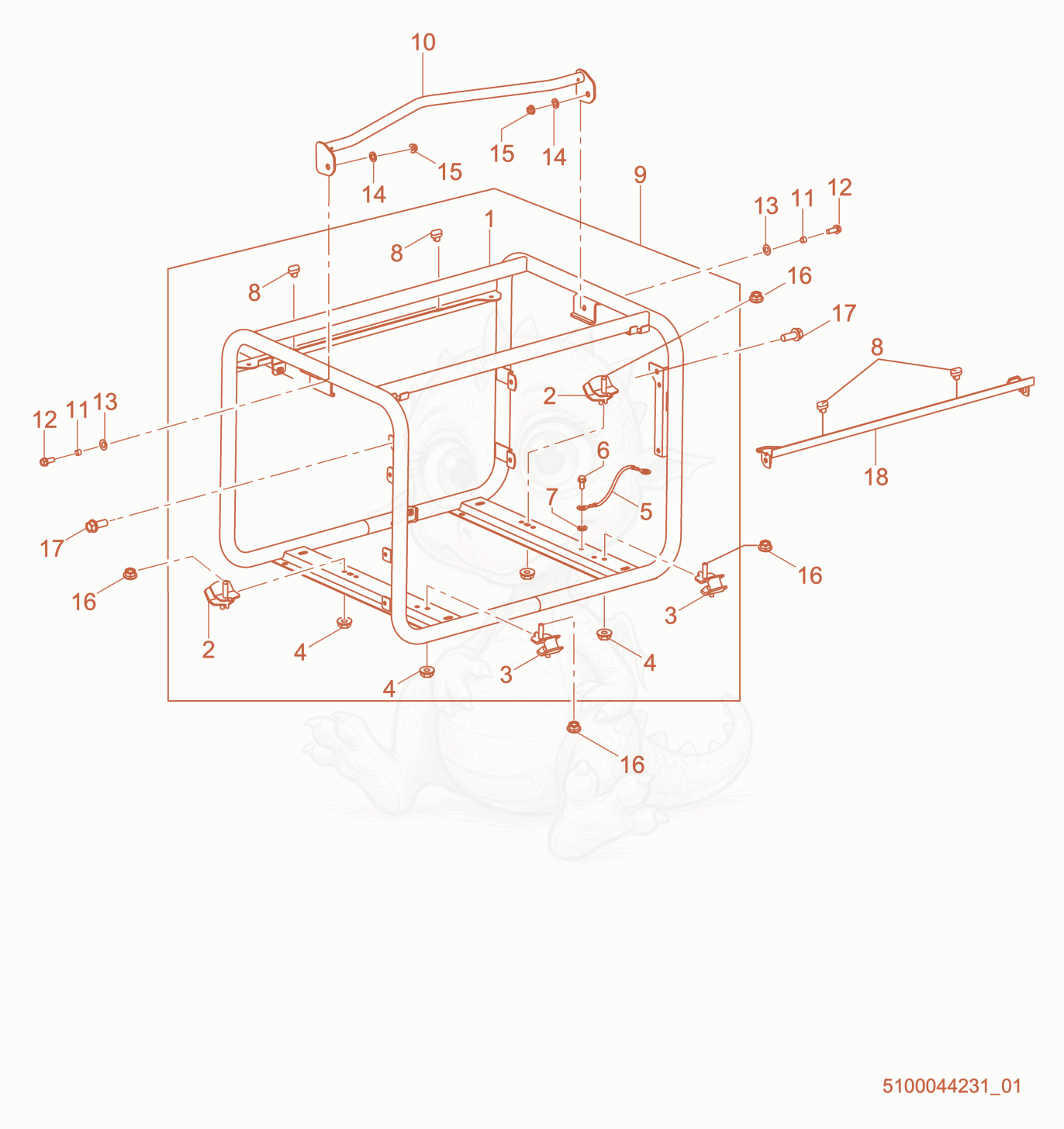

GP6600A Frame cpl. Diagram
- FRAME-COMPLETE - 5100043894×1
- Shockmount-rubber - 5000213375×2
- Shockmount-rubber - 5000213377×2
- NUT M8 - 5000171803×4
- Wire-connecting - 5000171822×1
- BOLT M6 X 12 - 5000171823×1
- WASHER-LOCK - 5000171824×1
- GUARD-STOPPER,DISCHARGE - 5000213380×4
- FRAME-REAR - 5100043896×1
- BRACKET-LIFTING - 5100043897×1
- COLLAR - 5100043898×2
- BOLT M8 X 14 - 5200003541×2
- WASHER-SPRING - 5100043899×2
- Washer - 5000179718×2
- NUT M8 - 5000171803×2
- NUT M10 - 5000171816×4
- BOLT M8 X 20 - 5000171804×2
- Channel-front - 5000171818×1
