SPARE PARTS LIST LS750/1002 SP

LS750/1002 TANK Diagram

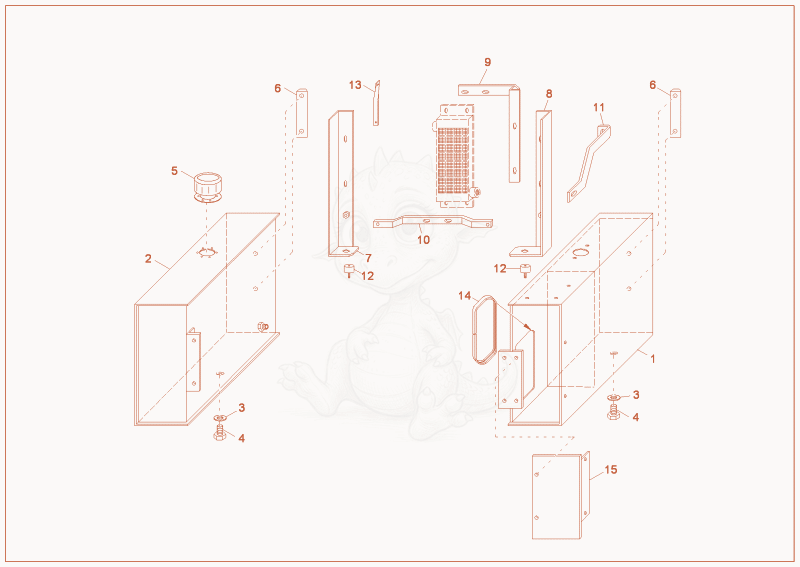

Exploded parts diagram of the TANK of a Wacker Neuson LS750/1002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000078692Not stocked
    hydraulic tank×1
  • 21000105268Not stocked
    fuel tank×1
  • 31000085676
    $0.80
    seal ring - 1000085676×2
  • 41000085417
    $1.06
    hex screw - 1000085417×2
  • 51000079041
    $68.07
    FILLER PIPE - 1000079041×1
  • 61000065026Not stocked
    view glass×2
  • 71000105258Not stocked
    cooler support×1
  • 81000105257Not stocked
    cooler support×1
  • 91000105301Not stocked
    cooler support×1
  • 101000105250Not stocked
    cooler support×1
  • 111000105269Not stocked
    cooler support×1
  • 121000002263Not stocked
    swing metal buffer×2
  • 131000105245Not stocked
    bracket×1
  • 141000097220Not stocked
    rubber profile×1
  • 151000078698Not stocked
    oil tank cover×1
