SPARE PARTS LIST LS750/1002 SP

LS750/1002 HYDRAULIC INSTALLATION 1 Diagram

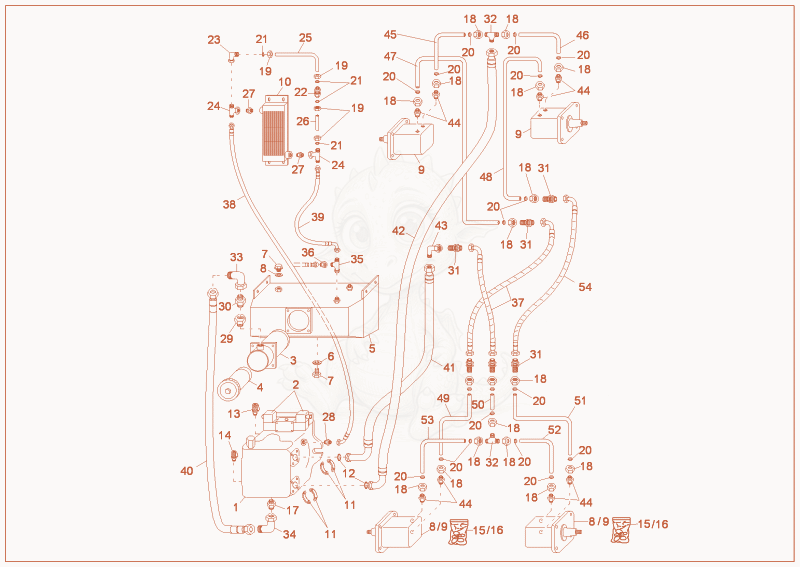

Exploded parts diagram of the HYDRAULIC INSTALLATION 1 of a Wacker Neuson LS750/1002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000062615Not stocked
    displacement pump×1
  • 21000089490
    $134.99
    SOLENOID - 1000089490×2
  • 31000001885Not stocked
    suction filter×1
  • 41000001888Not stocked
    filter insert×1
  • 51000105300Not stocked
    hydraulic tank×1
  • 61000083619Not stocked
    seal ring×1
  • 71000082413
    $8.23
    LOCK SCREW - 1000082413×1
  • 81000076275Not stocked
    wheel motor×4
  • 91000003235Not stocked
    wheel motor×4
  • 101000105280Not stocked
    oil cooler×1
  • 111000065278
    $12.43
    FLANGE - 1000065278×4
  • 121000083620
    $1.16
    o-ring - 1000083620×2
  • 131000083178
    $18.04
    EM3/M12X1,5 - 1000083178×1
  • 141000083180
    $37.65
    EM3/M14X1,5 - 1000083180×1
  • 151000076274Not stocked
    seal kit wheel motor×4
  • 161000076273Not stocked
    seal kit wheel motor×4
  • 171000085099
    $10.84
    GE28LMEDOMDA3C - 1000085099×1
  • 181000085138
    $3.12
    M18LSTA3C - 1000085138×18
  • 191000019577Not stocked
    union nut×4
  • 201000082843Not stocked
    olive×18
  • 211000019585
    $2.87
    DPR15LX - 1000019585×4
  • 221000065036
    $48.72
    RHD15LOMD-2BAR - 1000065036×1
  • 231000015512Not stocked
    screw joint×1
  • 241000085108
    $18.68
    ET15LOMDA3C - 1000085108×2
  • 251000235084Not stocked
    pipe line×1
  • 261000078681Not stocked
    bucket support×2
  • 271000015566Not stocked
    screw joint×2
  • 281000085101
    $9.72
    GE15LM22X1,5EDOMDA3C - 1000085101×1
  • 291000083070
    $38.70
    RI11/4EDX1A3C - 1000083070×1
  • 301000015496Not stocked
    screw joint×1
  • 311000015563Not stocked
    screw joint×6
  • 321000085073Not stocked
    screw joint×2
  • 331000085091
    $31.25
    EW28LOMDA3C - 1000085091×2
  • 341000083036Not stocked
    screw joint×1
  • 351000015512Not stocked
    screw joint×1
  • 361000065451Not stocked
    screw joint×1
  • 371000105270Not stocked
    Hose×3
  • 381000003280Not stocked
    Hose×1
  • 391000105600Not stocked
    Hose×1
  • 401000003281Not stocked
    Hose×1
  • 411000003282Not stocked
    Hose×1
  • 421000003283Not stocked
    Hose×1
  • 431000015513Not stocked
    screw joint×1
  • 441000085044
    $23.63
    GE18L7/8UNFOMDA3C - 1000085044×8
  • 451000105291Not stocked
    pipe line×1
  • 461000105292Not stocked
    pipe line×1
  • 471000105289Not stocked
    pipe line×1
  • 481000105288Not stocked
    pipe line×1
  • 491000105295Not stocked
    pipe line×1
  • 501000105290Not stocked
    pipe line×1
  • 511000105293Not stocked
    pipe line×1
  • 521000105296Not stocked
    pipe line×1
  • 531000105297Not stocked
    pipe line×1
  • 541000003284Not stocked
    Hose×1
