SPARE PARTS LIST LS750/1002 SP

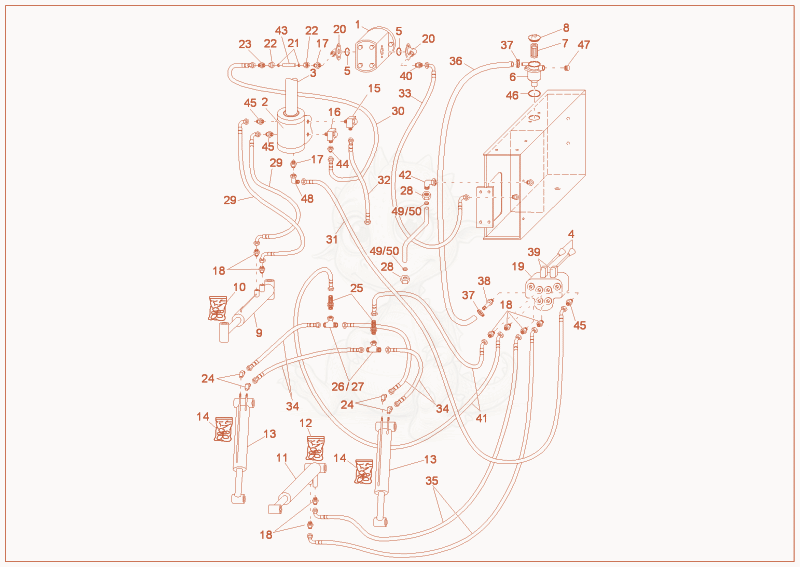

LS750/1002 HYDRAULIC INSTALLATION 2 Diagram
- 11000065028Not stockedhydraulic pump×1
- 21000152408Not stockedhydrostatic steering×1
- 31000001883Not stockedsteering column×1
- slider lever - 1000105622×2
- o-ring - 1000083620×2
- 61000106475Not stockedsuction filter element×1
- 71000019028Not stockedreflux filter insert×1
- 81000001934Not stockedcover×1
- 91000065020Not stockedsteering cylinder×1
- 101000065096Not stockedseal kit steering cyl.×1
- 111000001937Not stockedtilt ram×1
- 121000001938Not stockedseal kit tilt cylinder×1
- 131000001939Not stockedlift cylinder×2
- 141000001940Not stockedseal kit×1
- 151000479601Not stockedscrew joint×1
- 161000083054Not stockedWH15LOMDA3C×1
- GE10LR1/2EDOMDA3C - 1000082844×2
- 181000015489Not stockedscrew joint×9
- 191000065027Not stockedcontrol valve×1
- 201000003187Not stockedangle flange×2
- DPR12LX - 1000015484×2
- M12L ST A3C - 1000015482×2
- 231000083179Not stockedscrew joint×1
- 241000105201Not stockedscrew joint×4
- SV08-L - 1000085075×2
- ET08LOMDA3C - 1000015518×2
- 271000237015Not stockedscrew joint×2
- 281000019577Not stockedunion nut×2
- 291000003272Not stockedHose×2
- 301000003273Not stockedHose×1
- 311000003274Not stockedHose×1
- 321000105271Not stockedHose×1
- 331000003275Not stockedHose×1
- 341000003276Not stockedHose×4
- 351000003277Not stockedHose×2
- 361000112719Not stockedHose×1
- HOSE STRAP - 1000079465×2
- 381000105209Not stockedhose sleeve×1
- 391000065126Not stockedarticulation×2
- 401000015566Not stockedscrew joint×1
- 411000003278Not stockedHose×1
- 421000015512Not stockedscrew joint×1
- 431000105281Not stockedpipe line×1
- 441000065451Not stockedscrew joint×1
- 451000022485Not stockedscrew joint×2
- 461000065041Not stockedo-ring×1
- 471000065042Not stockedbreather cartridge×1
- 481000015510Not stockedscrew joint×1
- DPR15LX - 1000019585×2
- 501000105430Not stockedseal×2
