SPARE PARTS LIST LS750/1002 SP

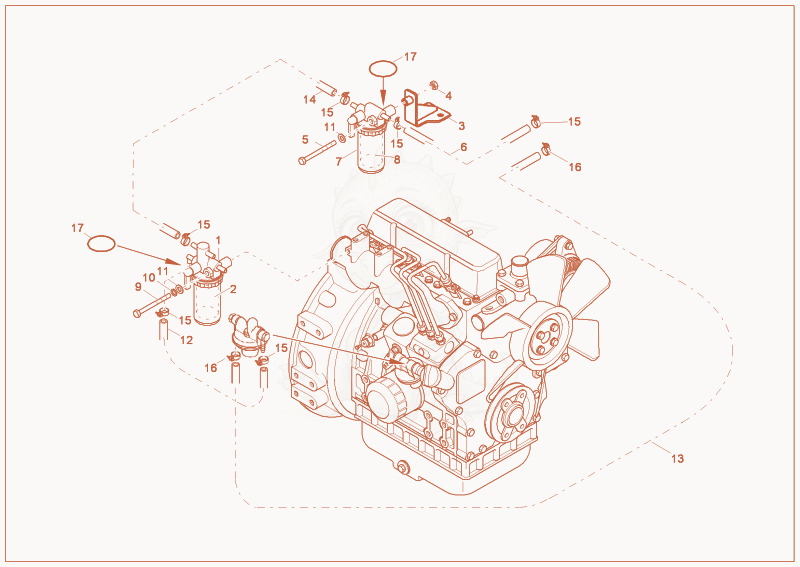

LS750/1002 fuel system Diagram

Exploded parts diagram of the fuel system of a Wacker Neuson LS750/1002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000003897Not stocked
    fuel filter×1
  • 21000000990Not stocked
    fuel filter×1
  • 31000003882Not stocked
    bracket water seperator×1
  • 41000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 51000085320
    $1.13
    hex screw - 1000085320×1
  • 61000147636
    $4.88
    SCDIES 8,0 - 1000147636×0.8
  • 71000003893Not stocked
    Water Seperator×1
  • 81000098673
    $18.35
    Filter insert - 1000098673×1
  • 91000022334Not stocked
    hex screw×1
  • 101000015437Not stocked
    lock washer×1
  • 111000015431Not stocked
    washer×2
  • 121000147636
    $4.88
    SCDIES 8,0 - 1000147636×0.42
  • 131000147636
    $4.88
    SCDIES 8,0 - 1000147636×0.8
  • 141000147636
    $4.88
    SCDIES 8,0 - 1000147636×0.6
  • 151000083266
    $2.44
    HOSE CLAMP - 1000083266×4
  • 161000083270
    $4.79
    hose clamp - 1000083270×2
  • 171000019708
    $1.69
    O-RING - 1000019708×2
