SPARE PARTS LIST LS750/1002 SP

LS750/1002 BRAKE INSTALLTION Diagram

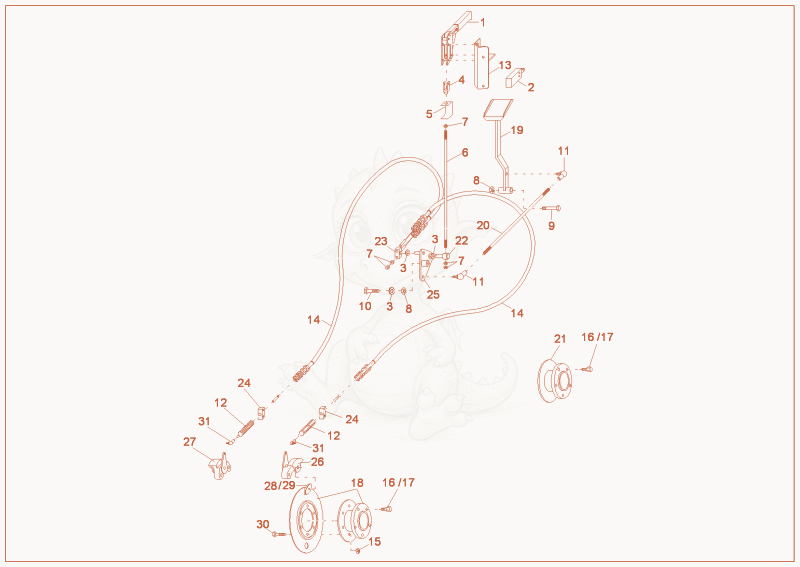

Exploded parts diagram of the BRAKE INSTALLTION of a Wacker Neuson LS750/1002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000001803Not stocked
    parking brake lever×1
  • 21000003238
    $60.31
    SWITCH - 1000003238×1
  • 31000082679
    $0.75
    Washer M16-DIN134 - 1000082679×3
  • 41000083334
    $3.11
    fork head - 1000083334×1
  • 51000078775Not stocked
    shift plate×1
  • 61000013428Not stocked
    tie rod×1
  • 71000015427Not stocked
    hexagon nut×5
  • 81000015423Not stocked
    hexagon nut×2
  • 91000082284
    $2.51
    hex screw - 1000082284×1
  • 101000085337
    $1.94
    hex screw - 1000085337×1
  • 111000001712Not stocked
    ball and socket×2
  • 121000001655Not stocked
    pressure spring×2
  • 131000105937Not stocked
    parking brake lever×1
  • 141000001829Not stocked
    bowden cable×2
  • 151000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×10
  • 161000001928Not stocked
    wheel bolt×20
  • 171000234764Not stocked
    wheel bolt×20
  • 181000001933Not stocked
    wheel hub×2
  • 191000105252Not stocked
    brake pedal×1
  • 201000013429Not stocked
    tie rod×1
  • 211000062644Not stocked
    wheel hub×2
  • 221000105933Not stocked
    articulation×1
  • 231000105253Not stocked
    bracket×1
  • 241000105940Not stocked
    plate×2
  • 251000105275Not stocked
    bracket×1
  • 261000001932Not stocked
    brake calliper×1
  • 271000001933Not stocked
    wheel hub×1
  • 281000237429Not stocked
    brake shoe×2
  • 291000237431Not stocked
    brake shoe×2
  • 301000085355
    $1.51
    hex screw - 1000085355×10
  • 311000015635
    $20.00
    BALL AND SOCKET - 1000015635×2
